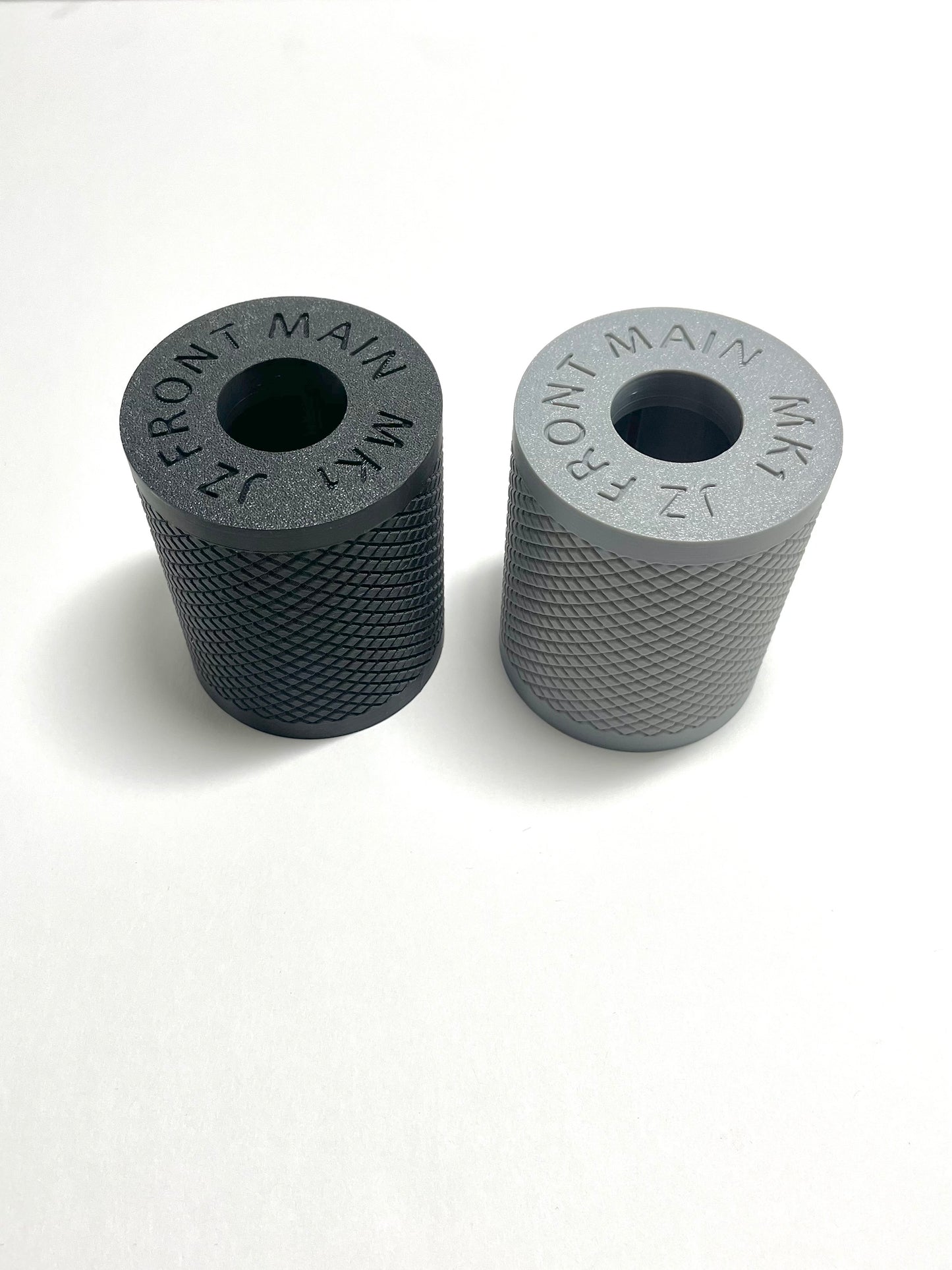

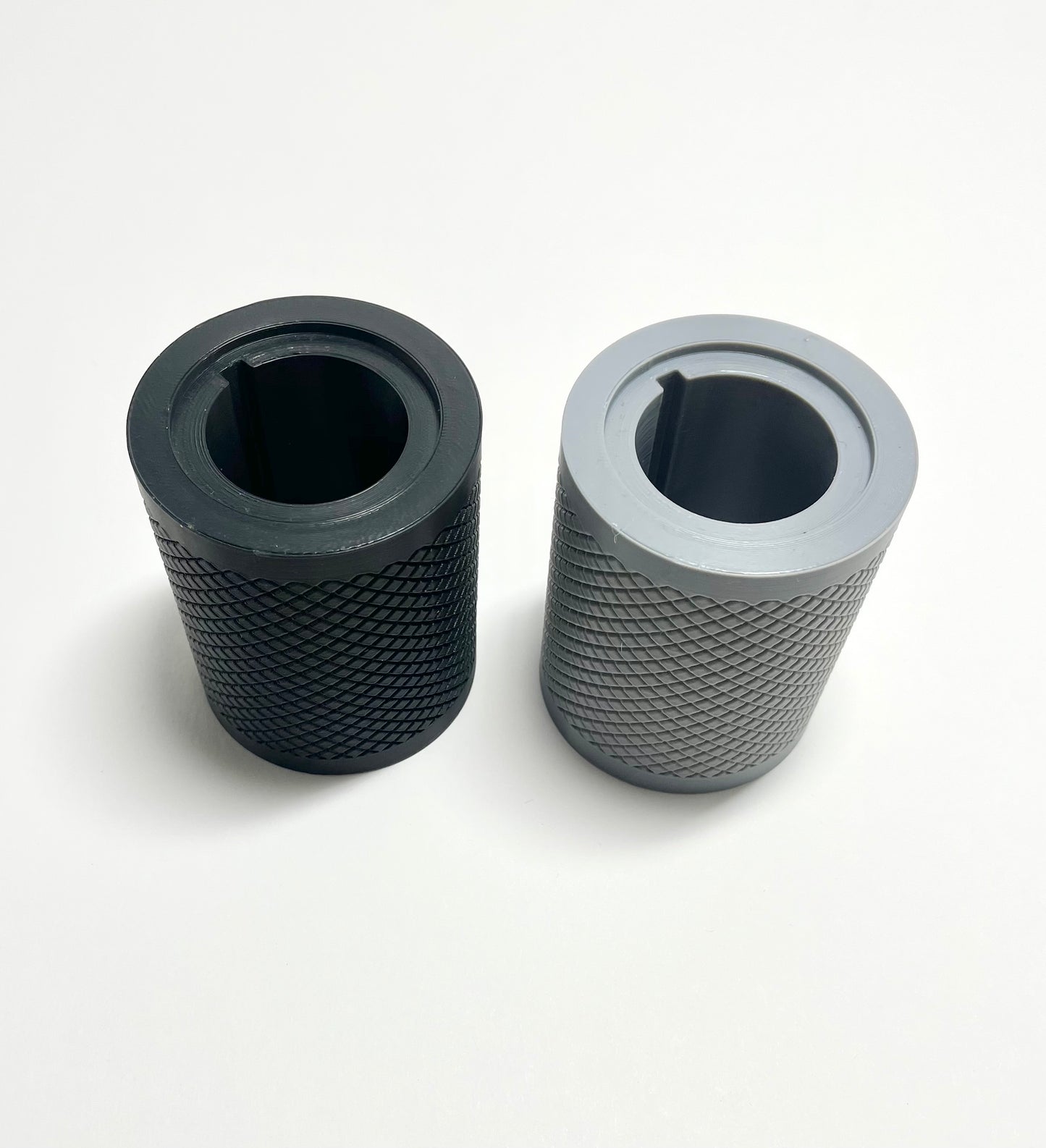

1JZ/2JZ Front Main Seal Installer

Introducing the FDM 3D printed 1JZ/2JZ Front Main Seal Installer. Designed for the JZ enthusiast or mechanic to conduct front main seal service on JZ engines. As part of regular engine maintenance, this seal must occasionally be replaced. This seal installer tool is a “must” for people who own or regularly work on JZ-powered vehicles.

MK1 understands the absolute nightmare of accessing and maintaining the notoriously leaky front and rear main seals of 1JZ and 2JZ engines. The MK1 Main Seal Installer is designed to make the hassle of crank seal maintenance a little more bearable. The seal installer component allows you to seat the front main crank seal in a simple and repeatable manner, after all the hard work required to get to the seal in the first place.

Specifications:

The 1JZ/2JZ Main Seal Installer was manufactured using state-of-the-art FDM printers, as well as a passionate and dedicated engineering team to formulate designs.

This component was printed using high-infill, ASA plastic to prevent part degradation and allow for repeated use. ASA has a high glass transition temperature (GTT) making it ideal for various car components.

All parts are designed and fabricated in the United States.

Application:

The seal installer can be used in two ways.

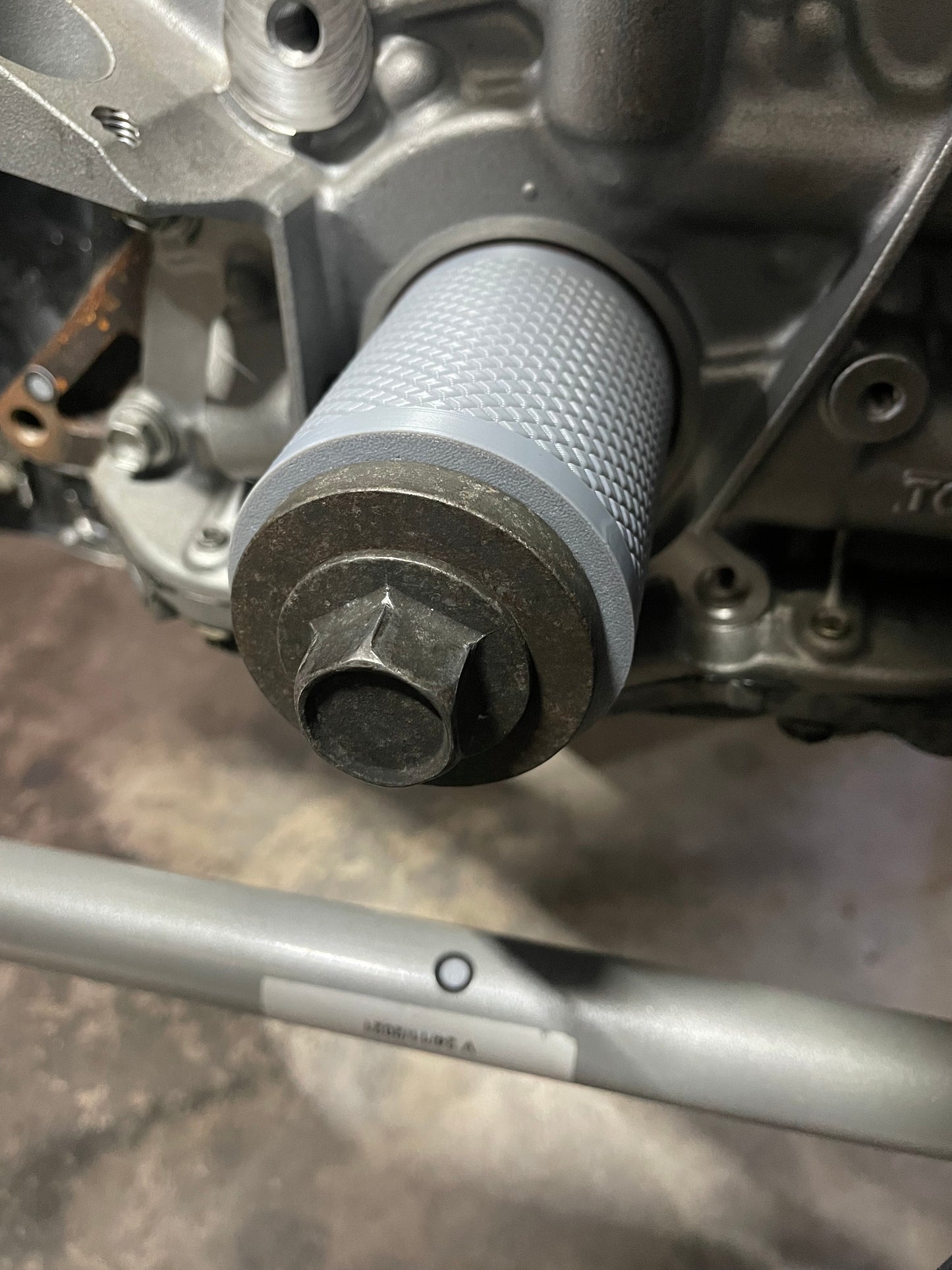

Method 1 (recommended): Lubricate the inner lip of the seal and insert it through the front main crankshaft into the location of the oil pump housing. Place the seal installer over the front main seal and insert the stock crank bolt into the seal installer. Tighten the bolt until the seal sits on the same level as the oil pump housing. Do not over-torque the seal installer, a firm snug( < 40 lb.ft) is all that is needed.

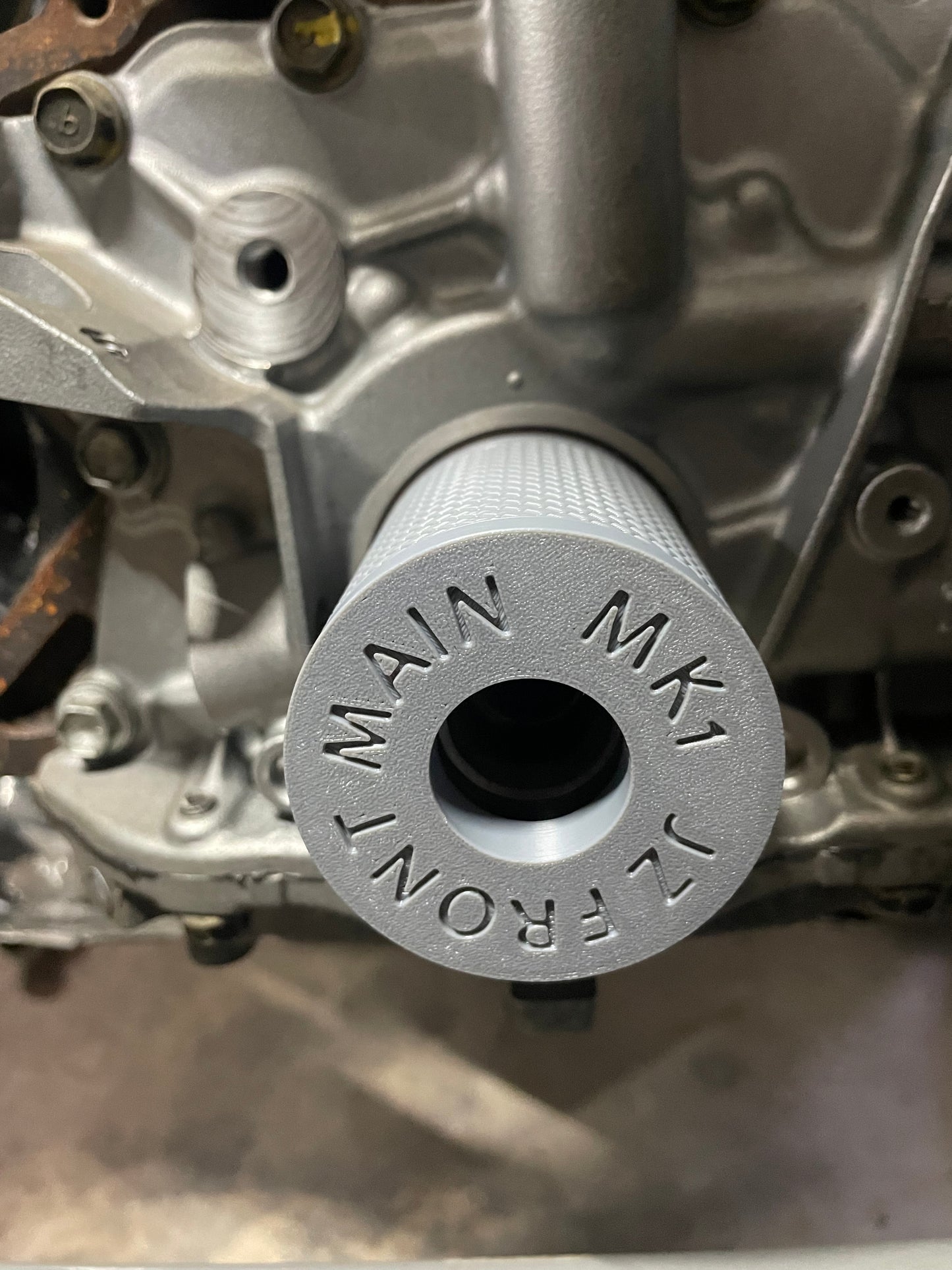

Method 2: Place the seal onto the oil pump housing and lightly press it in with the seal installer by hand, making sure the seal is centered on the oil pump housing. Then use a rubber mallet to lightly tap the seal in, until the seal installer bottom out on the front main pulley end.

Includes:

• MK1 1JZ/2JZ Front Main Seal Installer

Note:

Due to the high demand for the part, please allow 1 - 2 weeks of production time.
