A70 Supra Rear Coilover Access panel

MK1 Motorsport A70 Supra Rear Coilover Access Panel

The MK1 Motorsport Rear Coilover Access Panel is a purpose-built solution for Toyota Supra A70 owners running aftermarket coilover suspension systems.

Many performance coilovers are equipped with rear damping adjusters; however, accessing them can be difficult due to the factory interior panels. The conventional method—removing the rear speaker covers—can be inconvenient, time-consuming, and may risk damage to aging interior clips. For track-driven vehicles or cars requiring frequent suspension adjustments, this process becomes impractical.

While some owners opt to remove the rear interior entirely for easier access, doing so compromises the vehicle’s refinement and originality. The MK1 Motorsport Access Panel provides a clean, integrated alternative that preserves the interior while delivering immediate adjustability.

Key Features

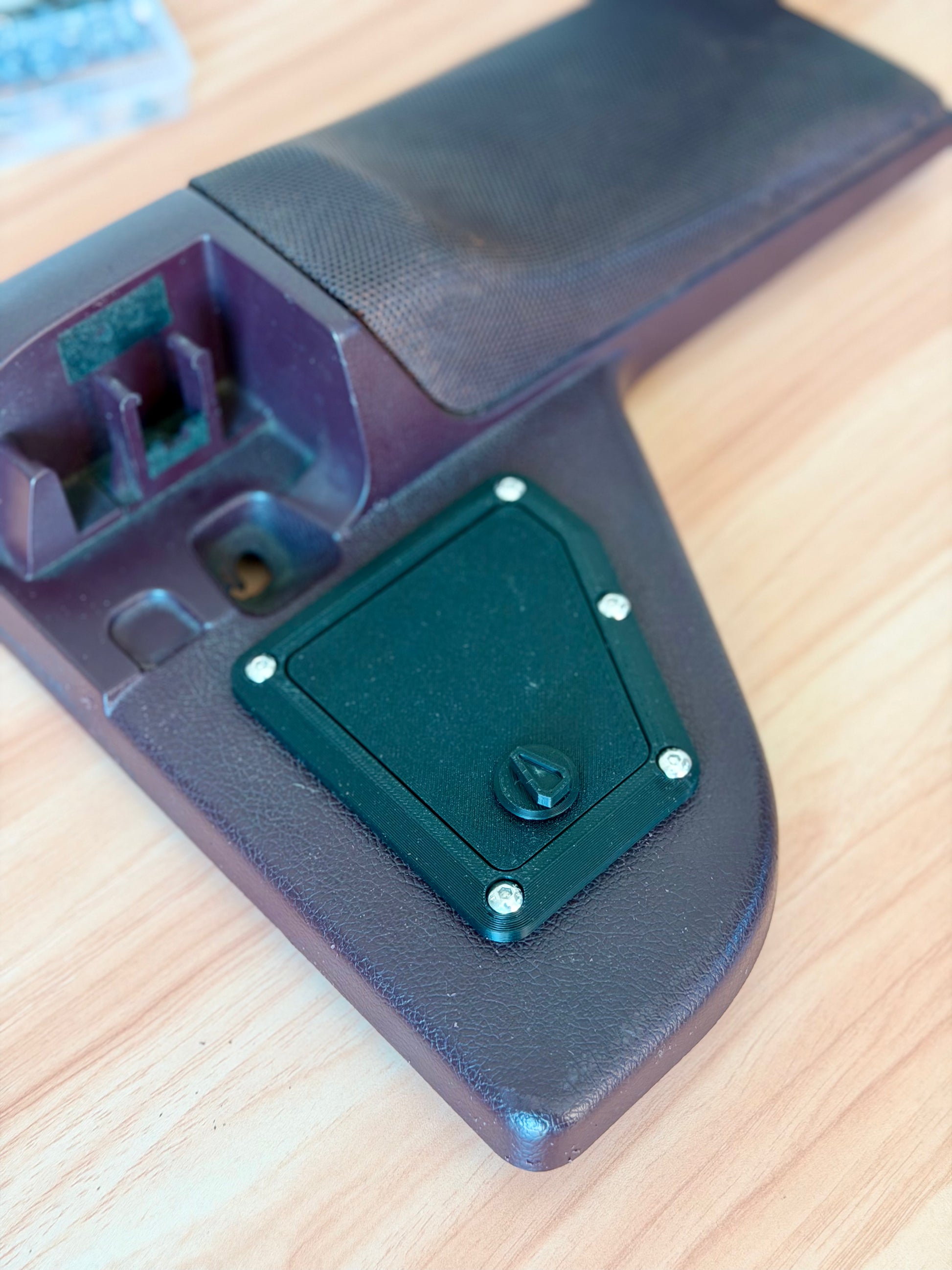

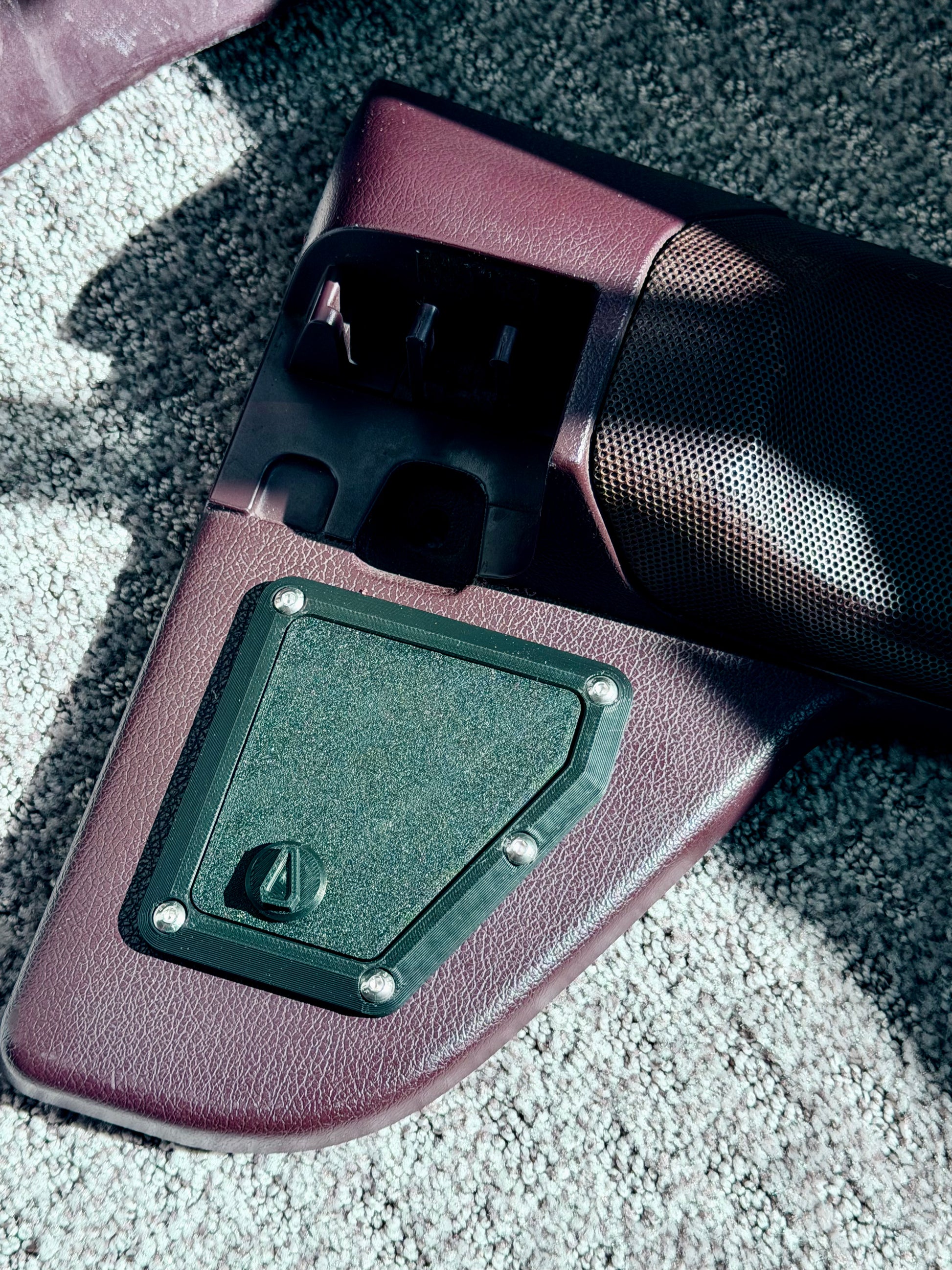

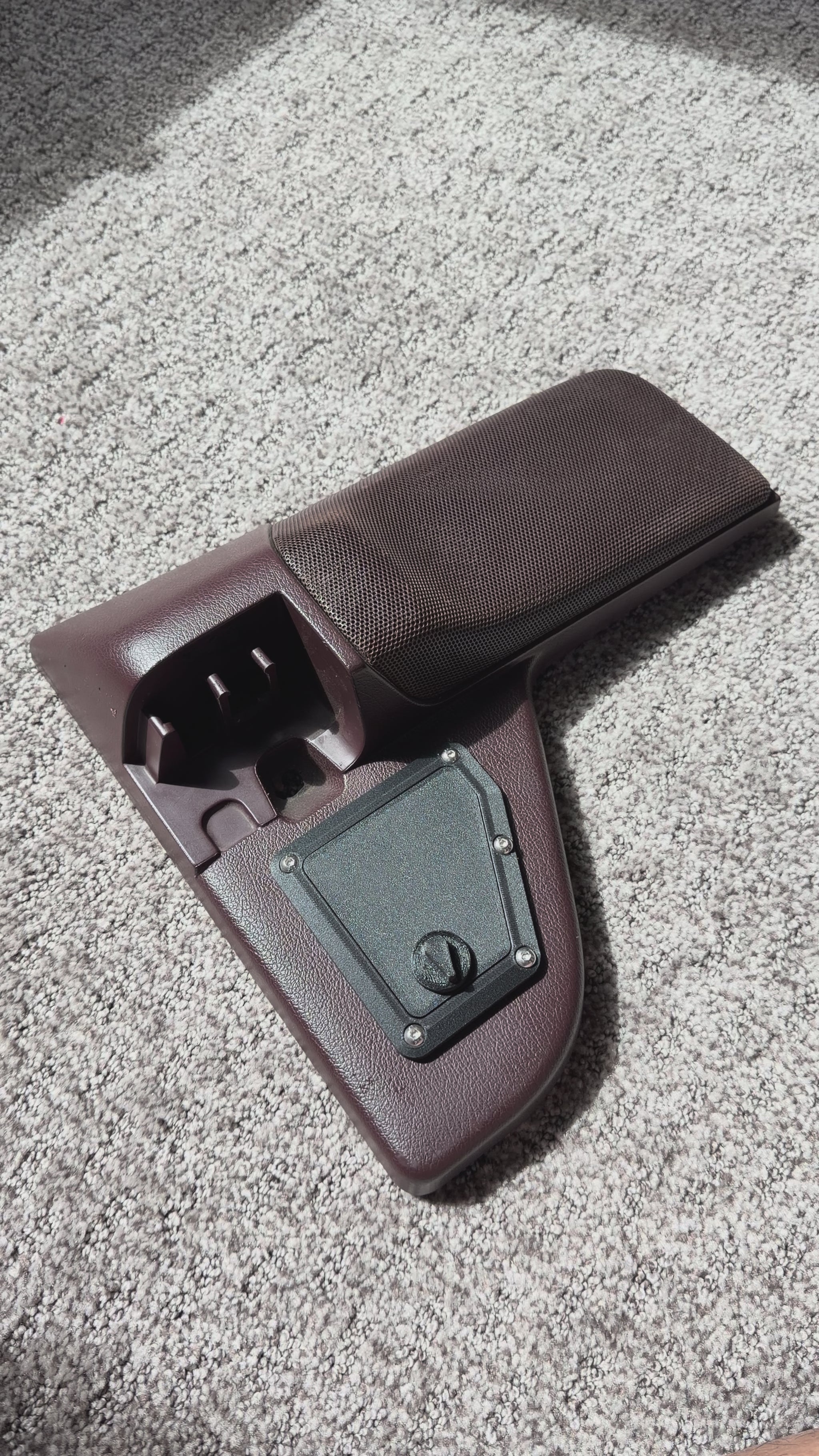

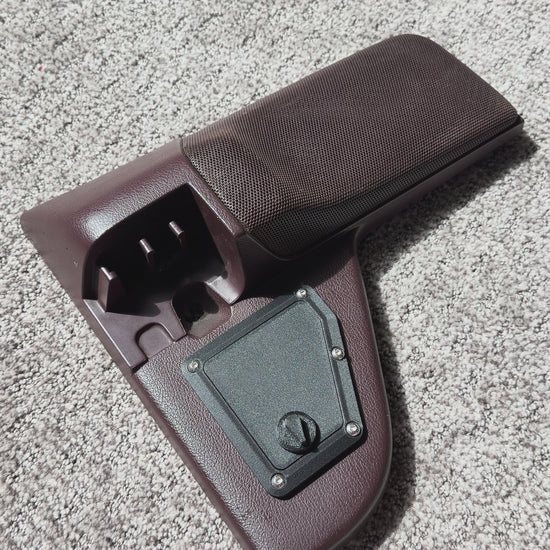

- Precision 3D-printed access panel engineered specifically for the A70 Supra

- Provides direct access to rear damping adjusters without removing interior panels

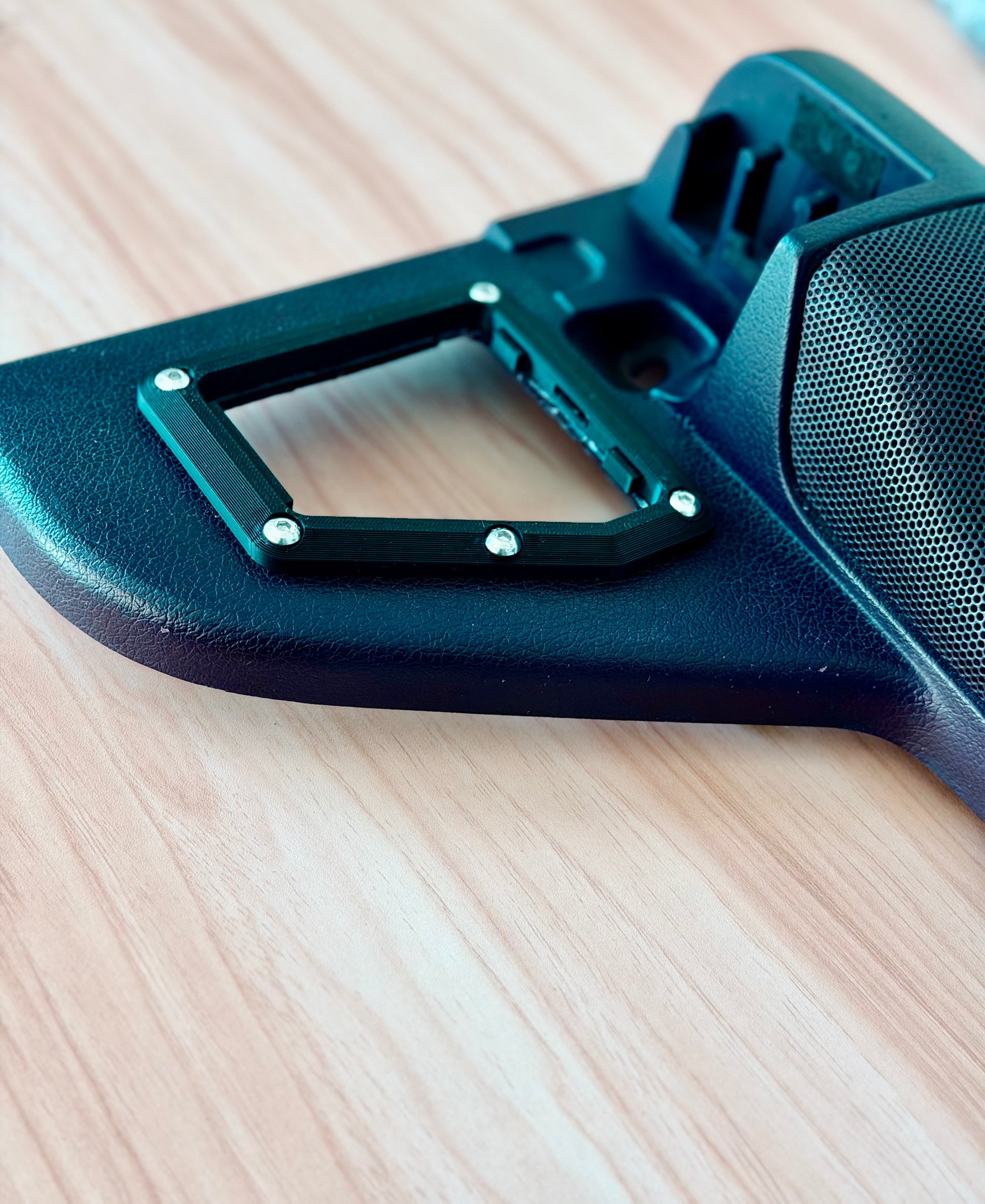

- Large access opening for comfortable finger clearance

- Compatible with most knob-style damping adjusters

- Ideal for track use or fine-tuning suspension for varying road conditions

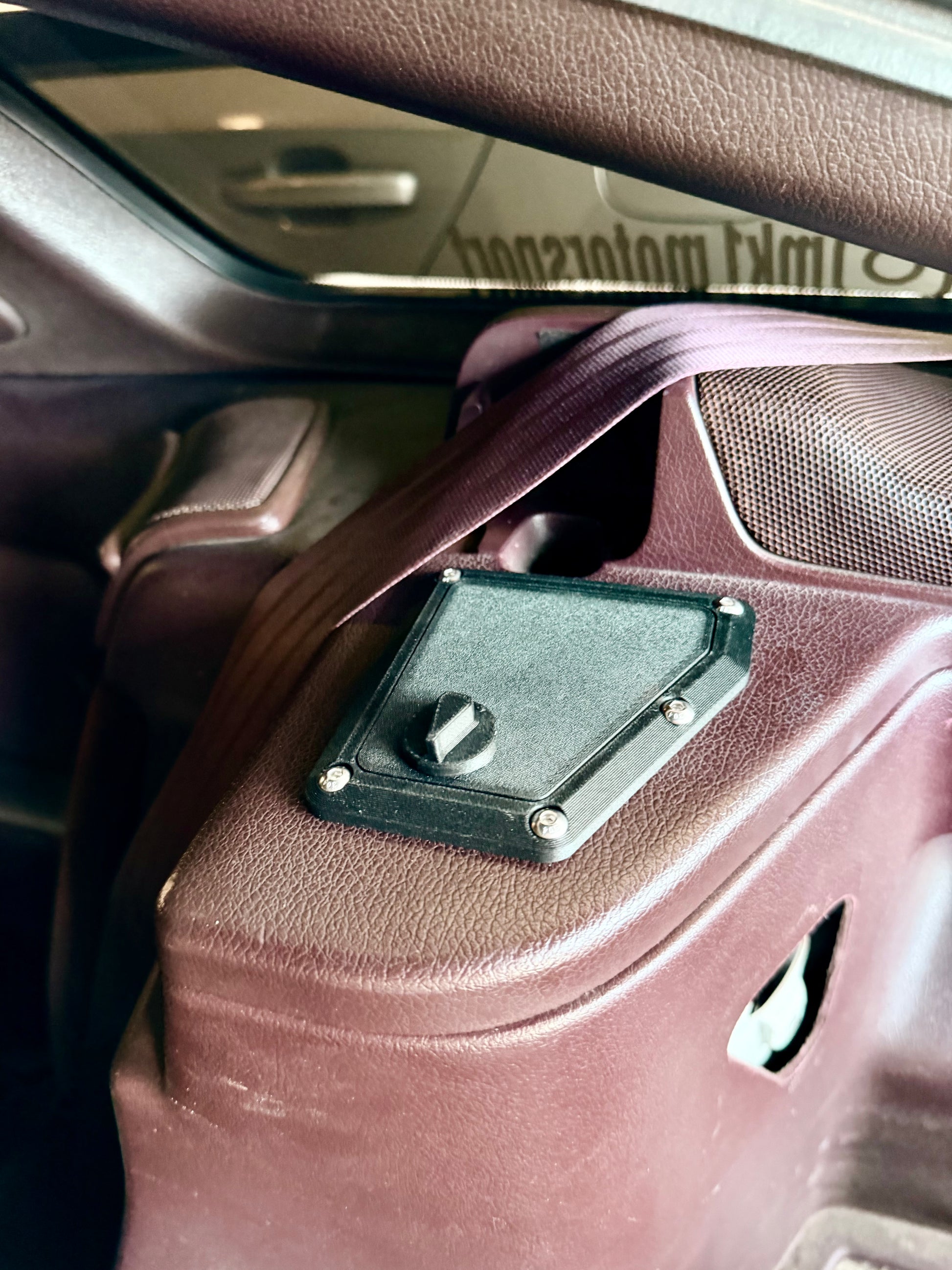

With a simple twist of the panel cover, rear suspension adjustments can be made within seconds—eliminating unnecessary disassembly and downtime.

Installation Requirements

Installation requires:

- Cutting an access opening in the rear speaker cover (ultrasonic cutters are recommended).

- Drilling five mounting holes in the speaker cover for secure panel installation (a 4 mm drill bit is recommended).

- Positioning the mounting holes centered between the lower mounting tabs. There is no fixed mounting location; final placement depends on personal preference.

Kit Includes

- A set of 3D-printed rear coilover access panels

- Stainless Mounting hardward

- UV-glowing MK1 Sticker

Note:

Due to the high demand for the part, please allow 1 - 2 weeks of production time.

This Rear Suspension Access Panel is not compatible with the OEM trunk privacy curtain. A separate version compatible with the trunk privacy curtain will be available soon
