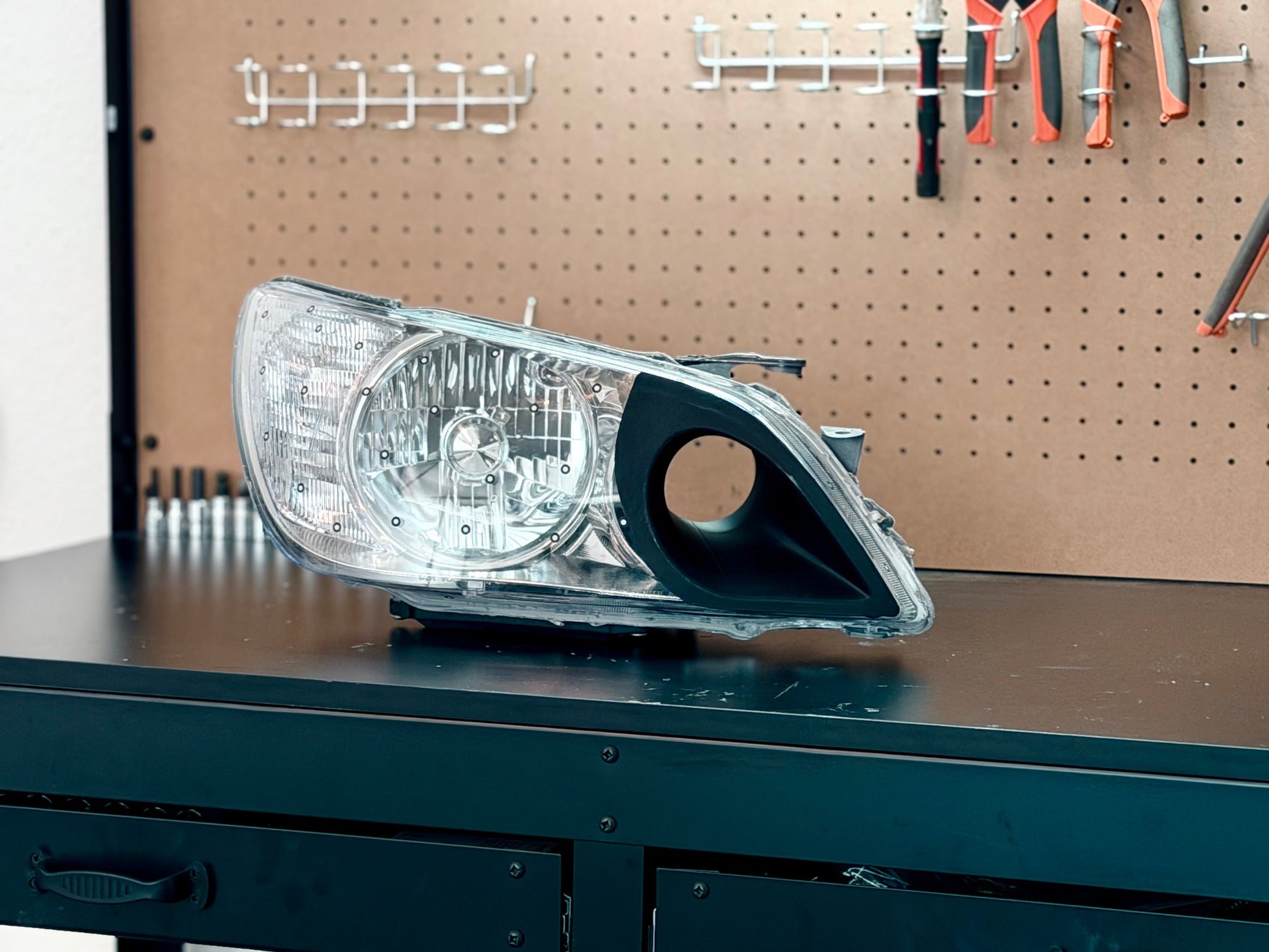

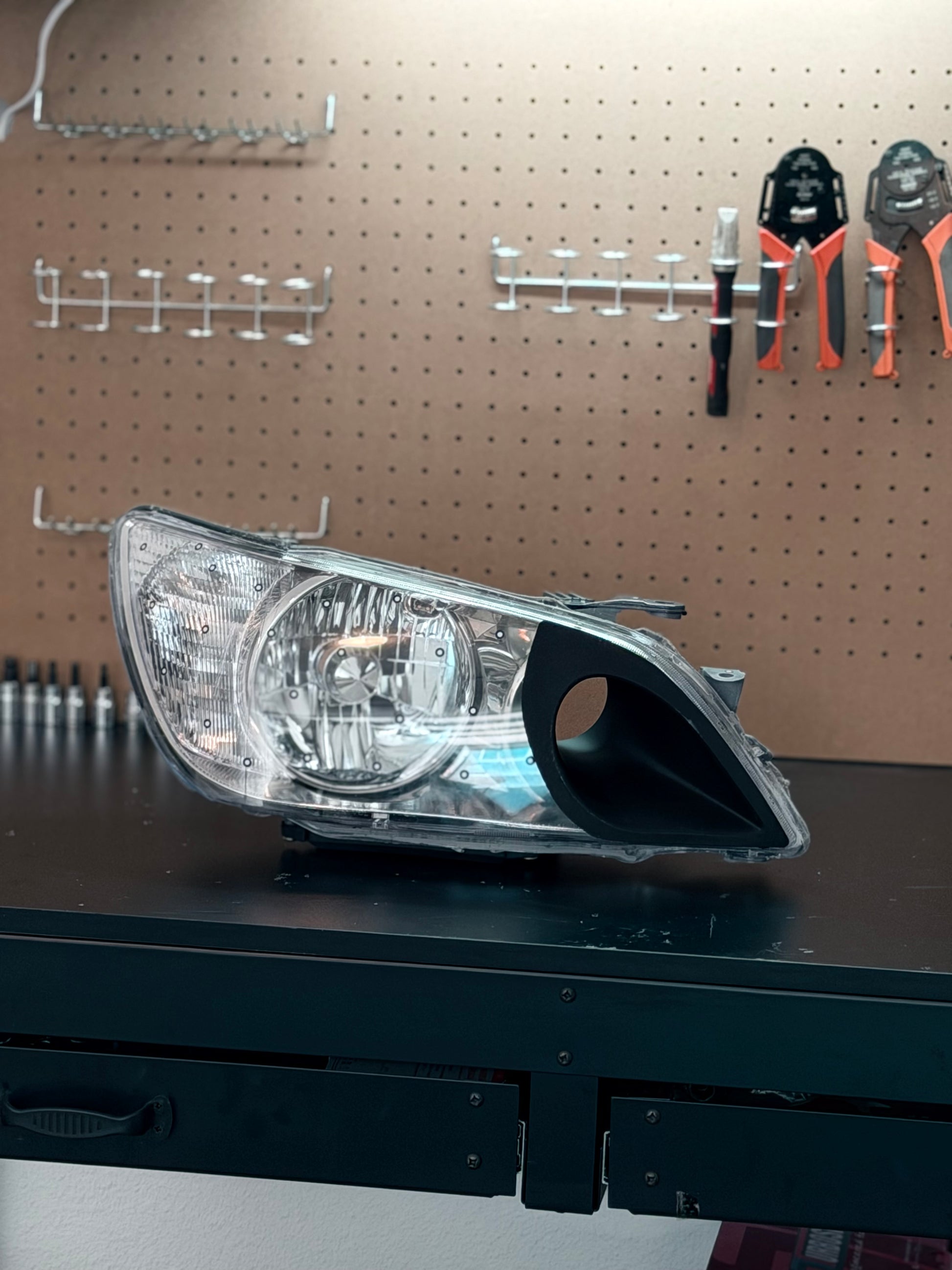

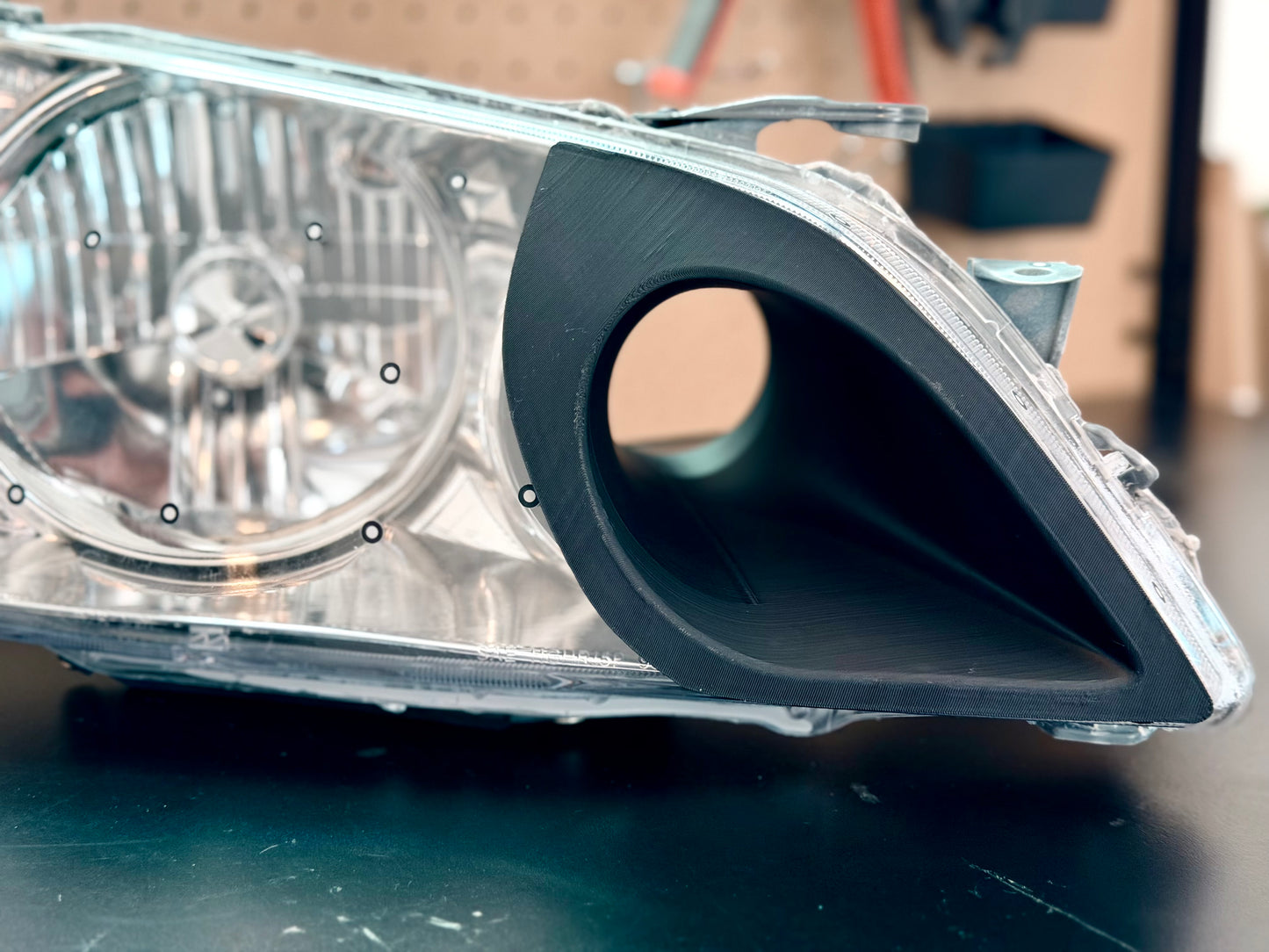

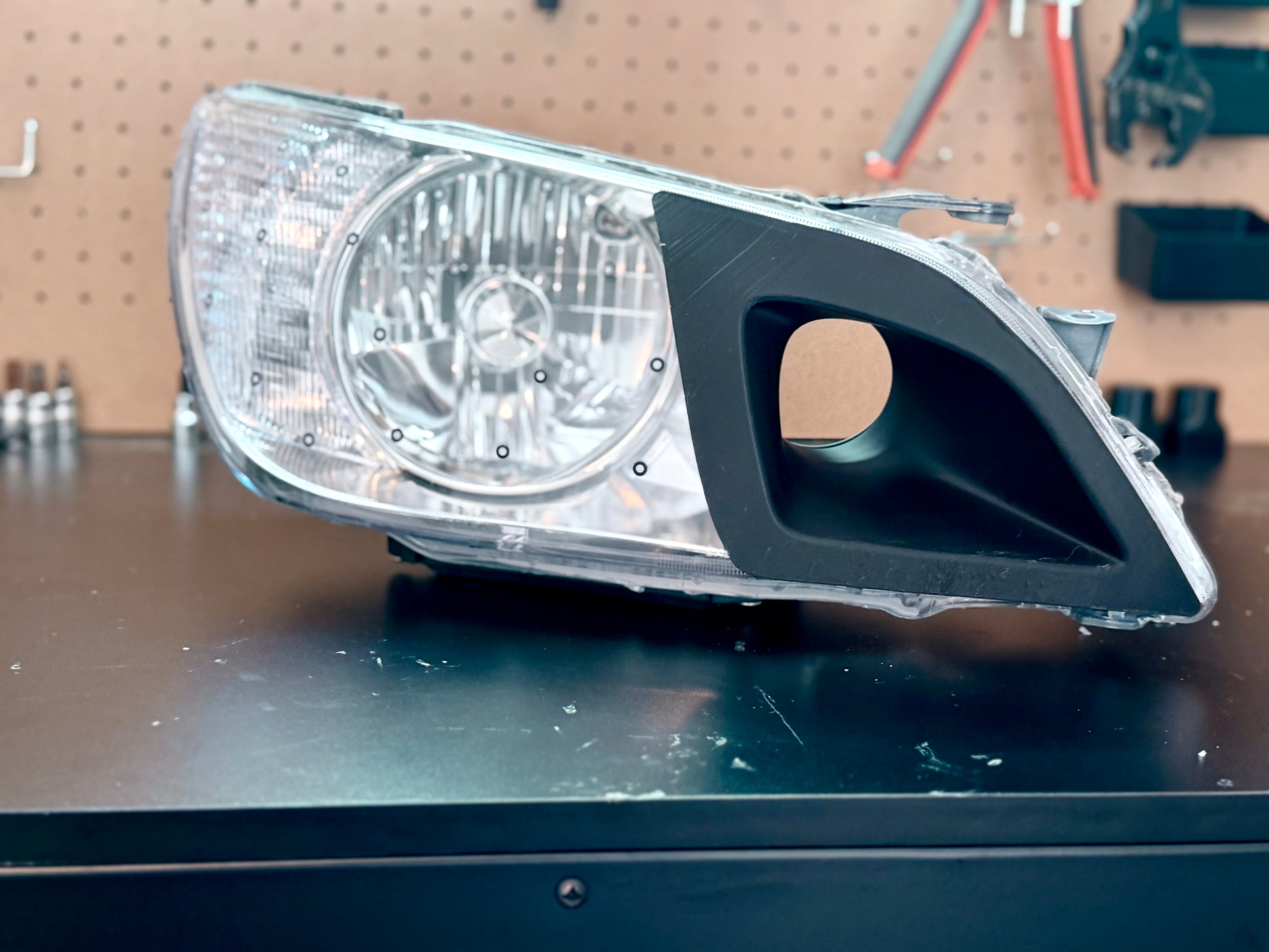

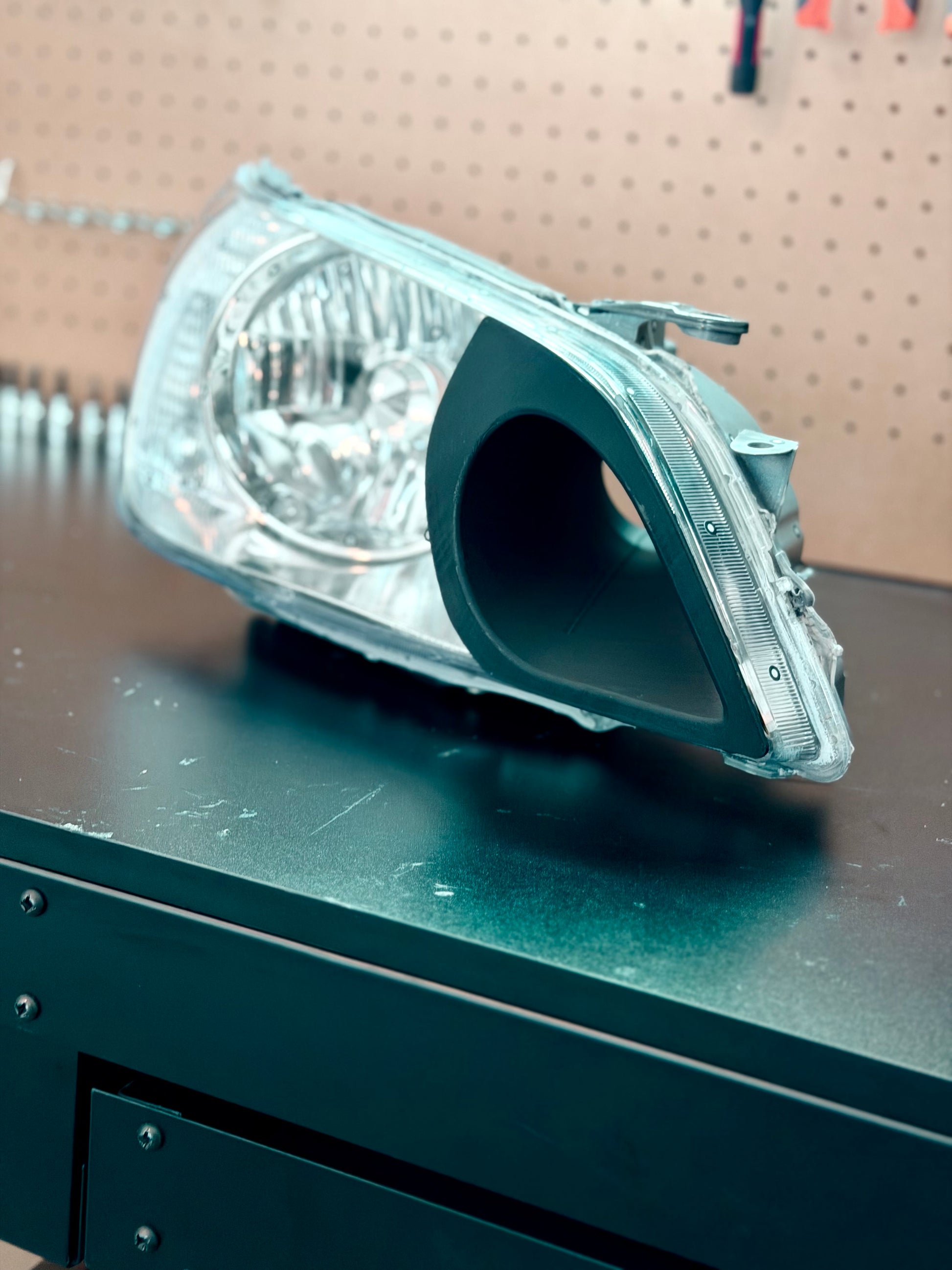

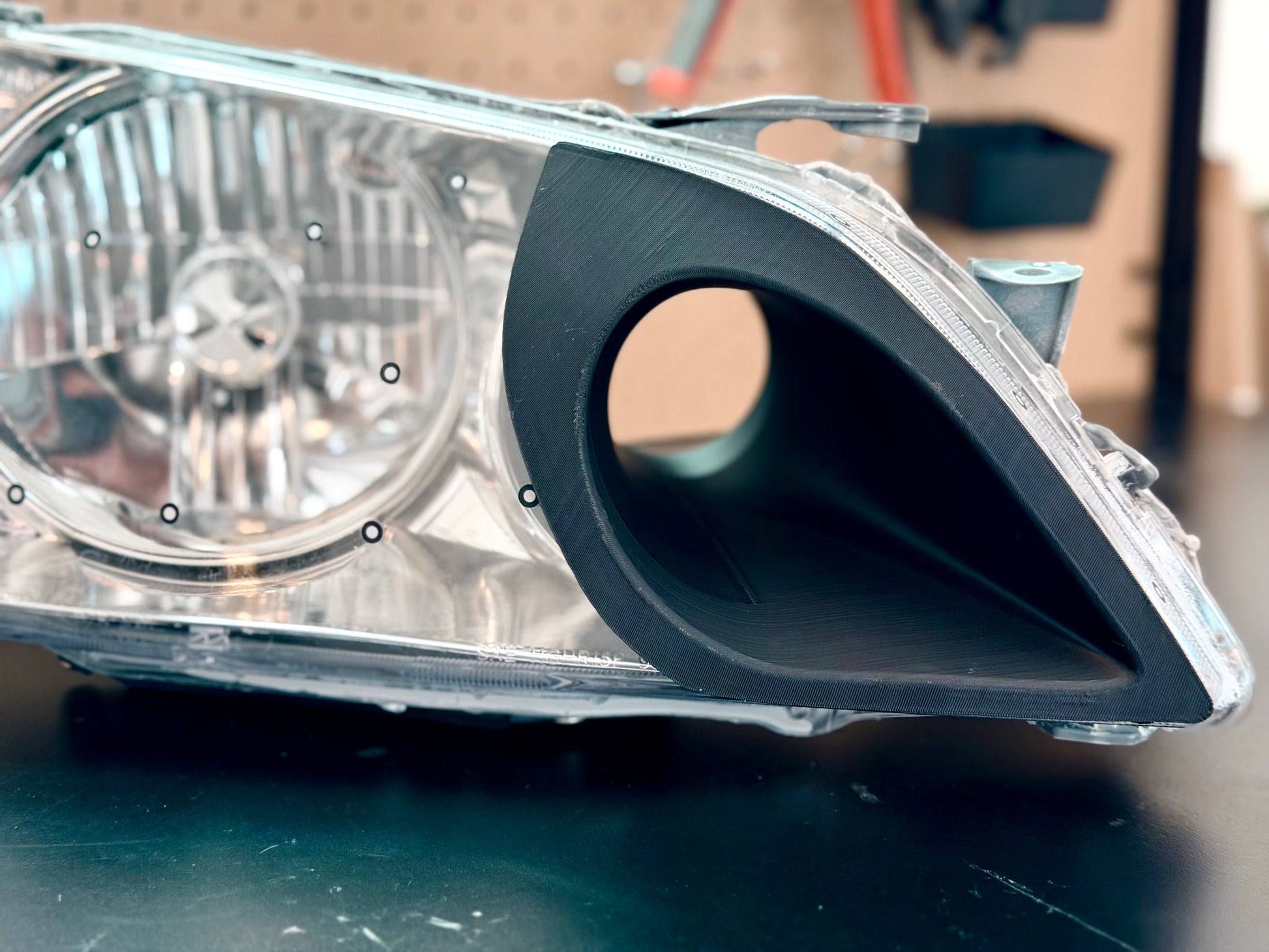

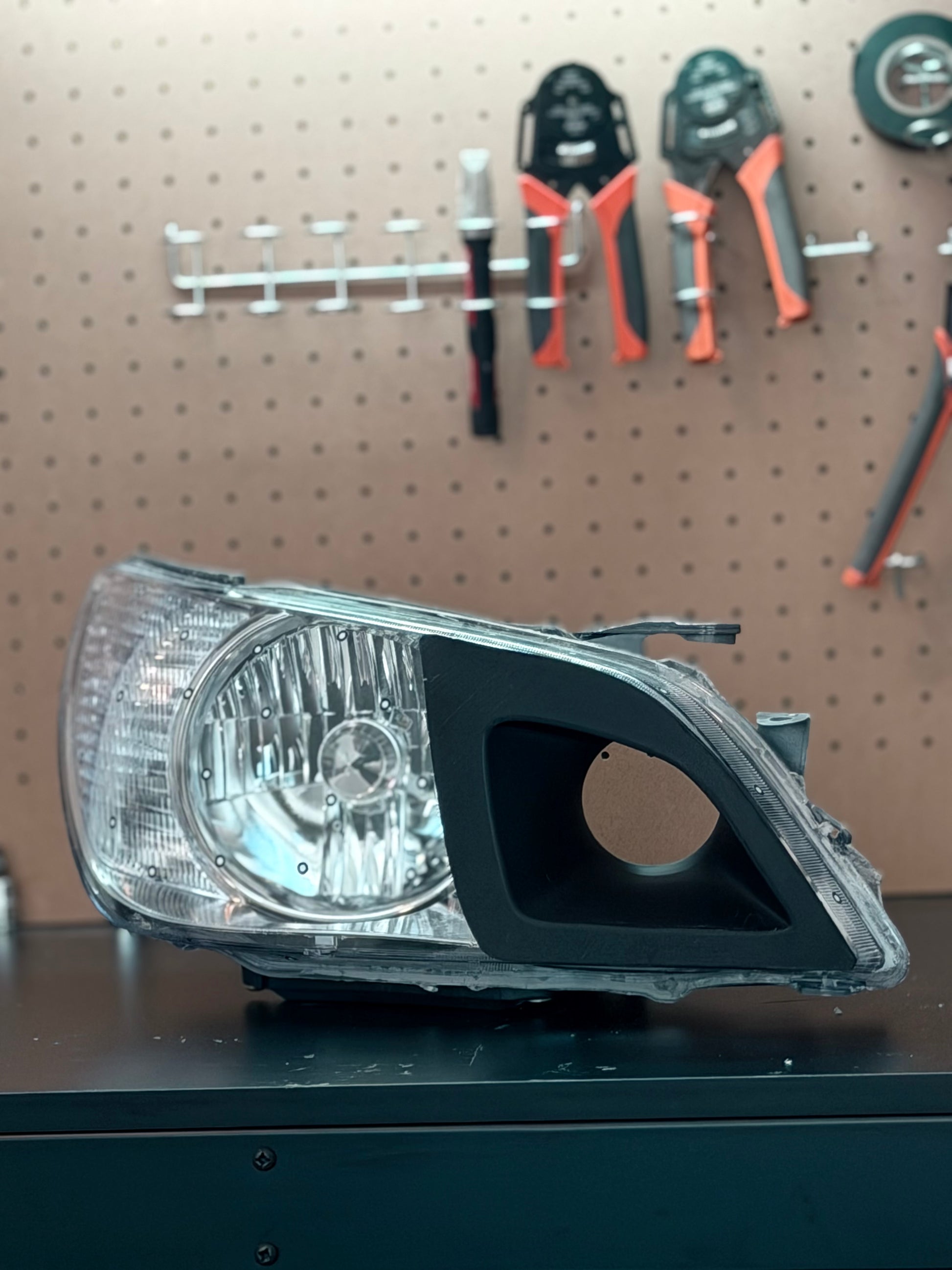

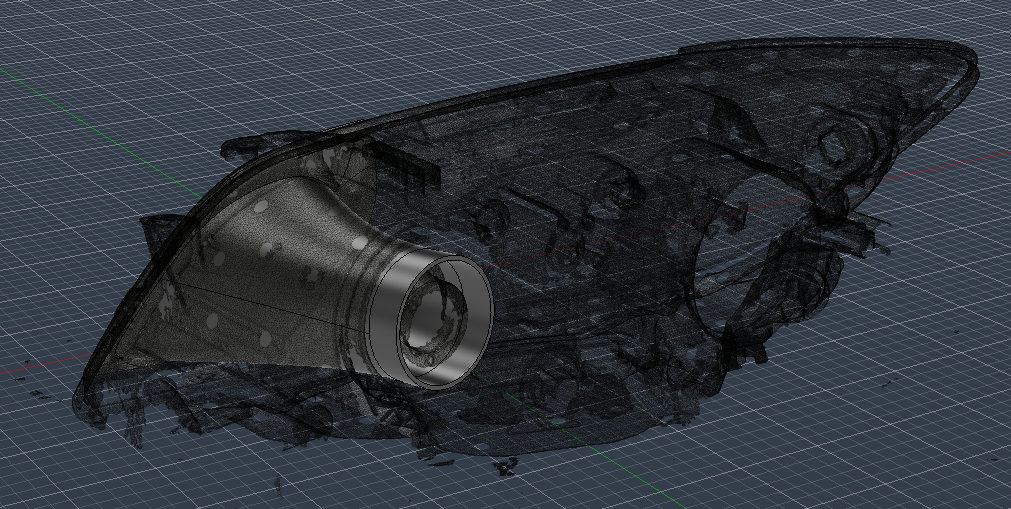

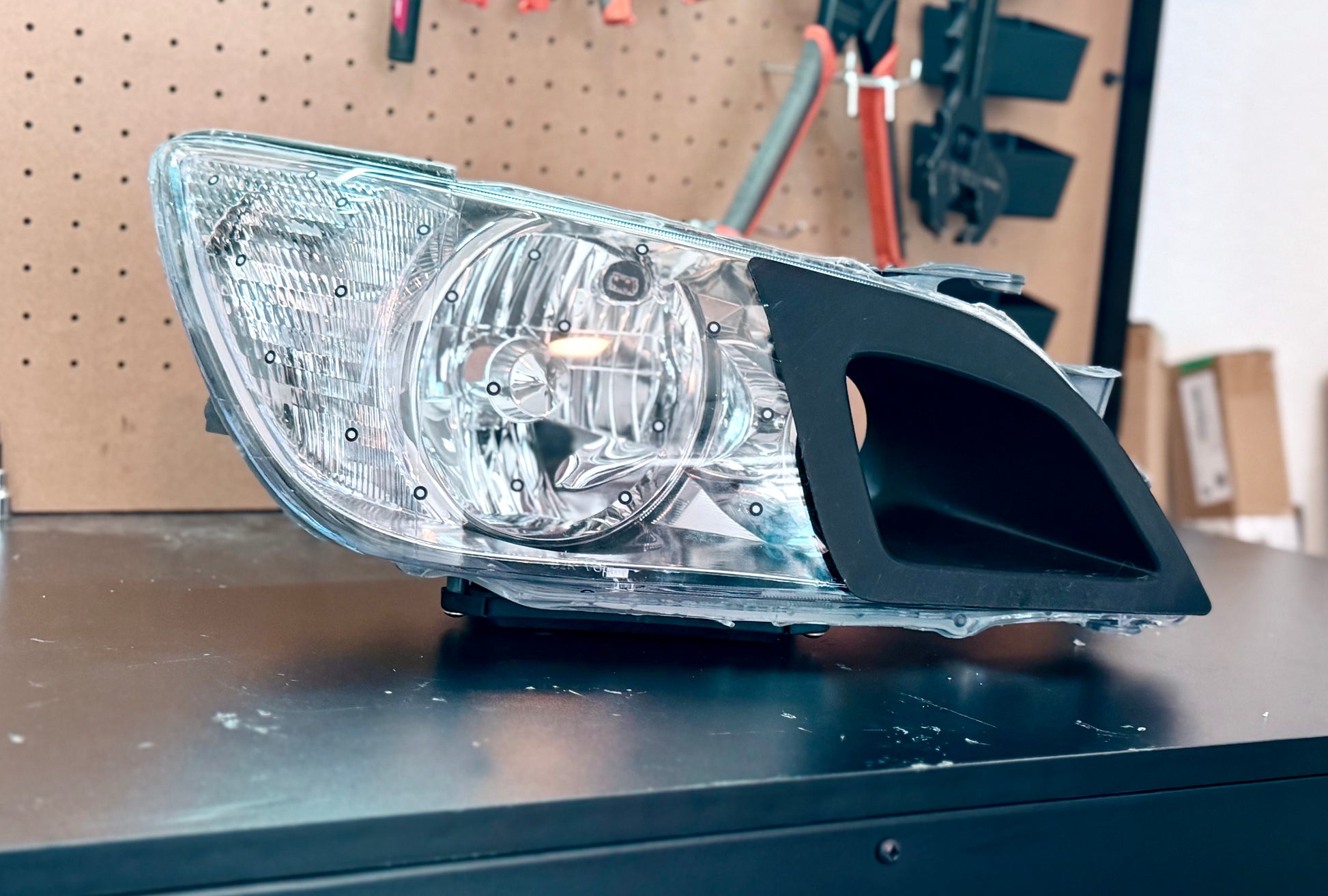

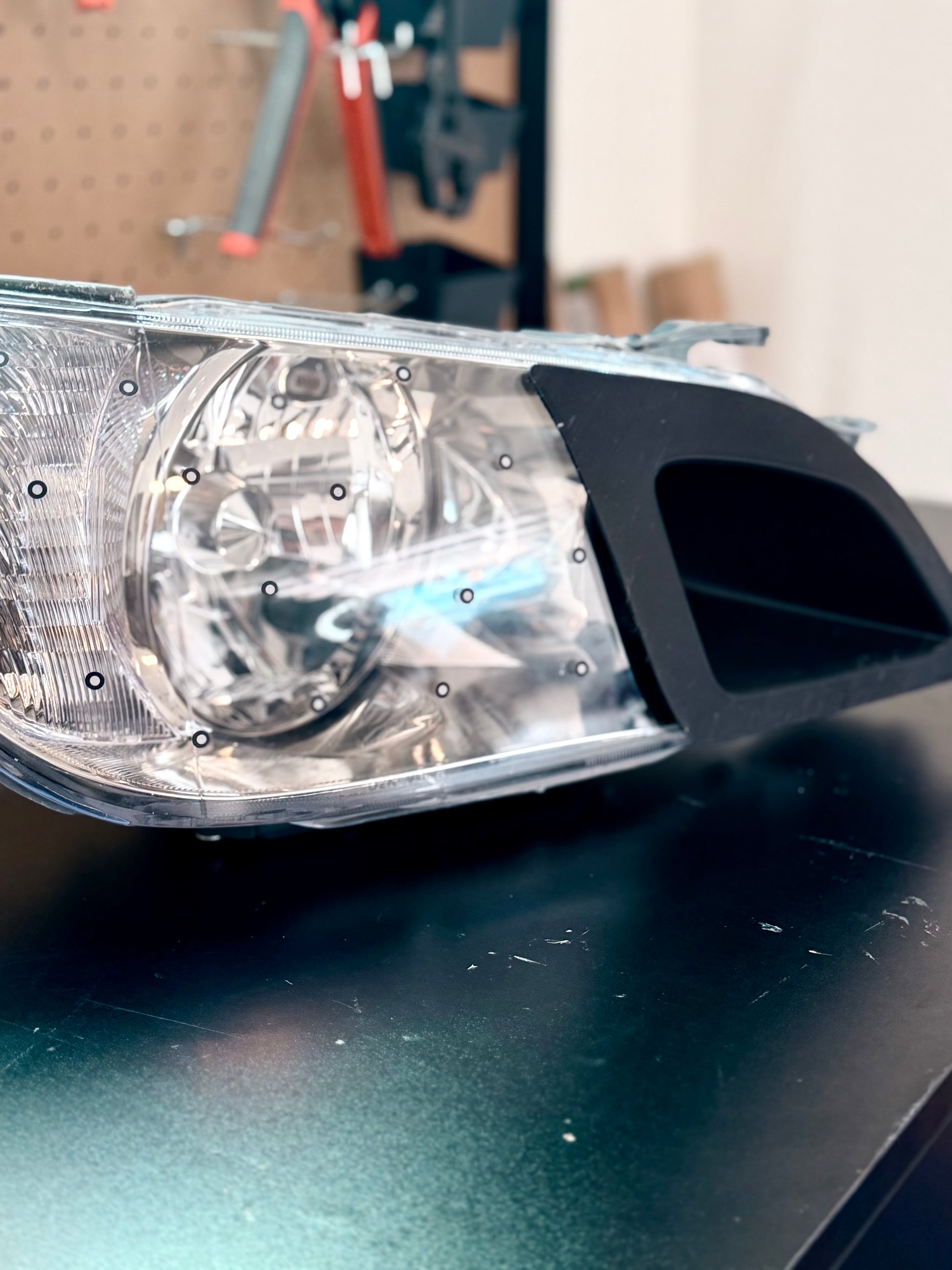

MK1 Motorsport Lexus IS300/Toyota Altezza Headlight High Beam Air Ram

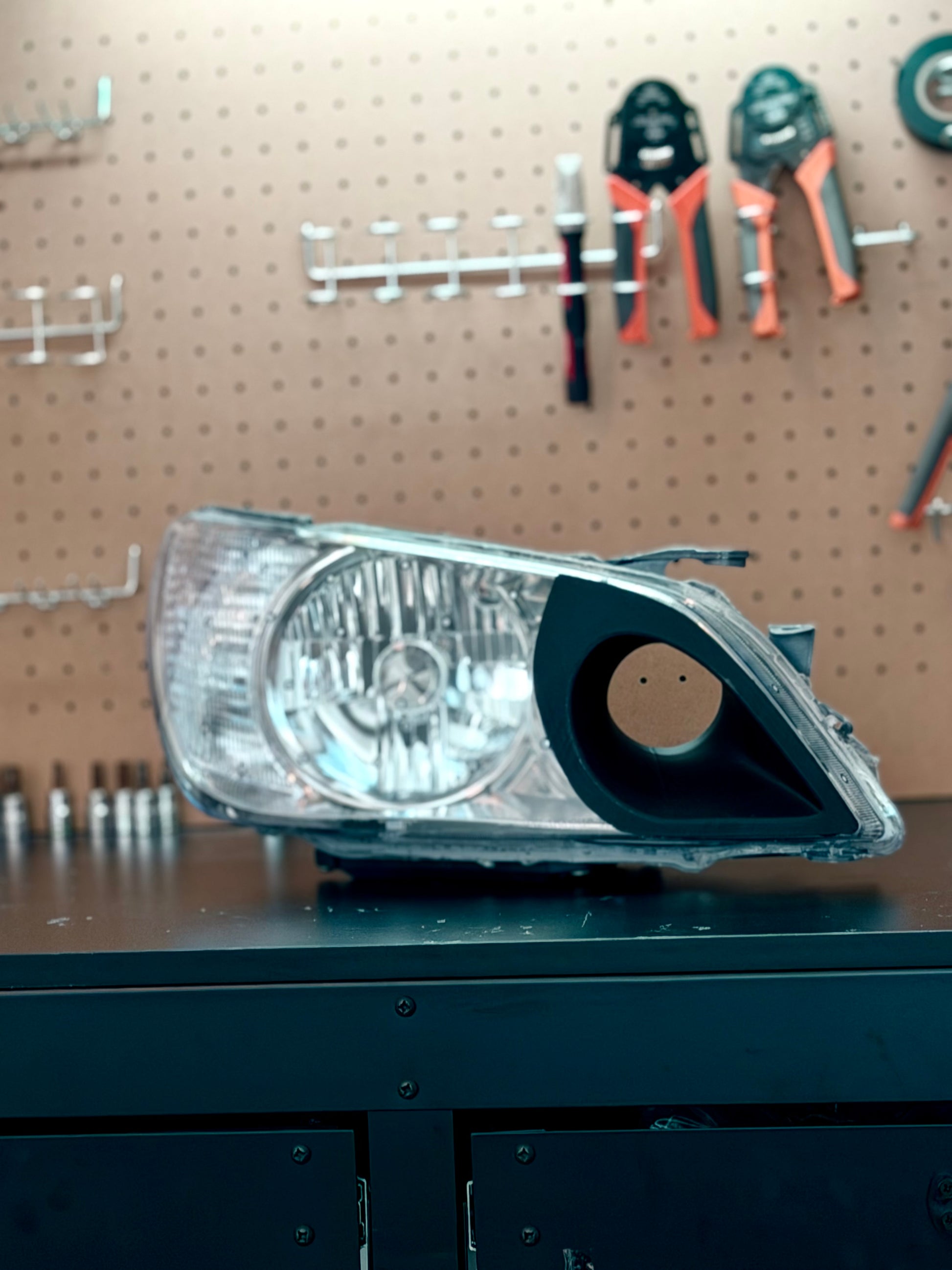

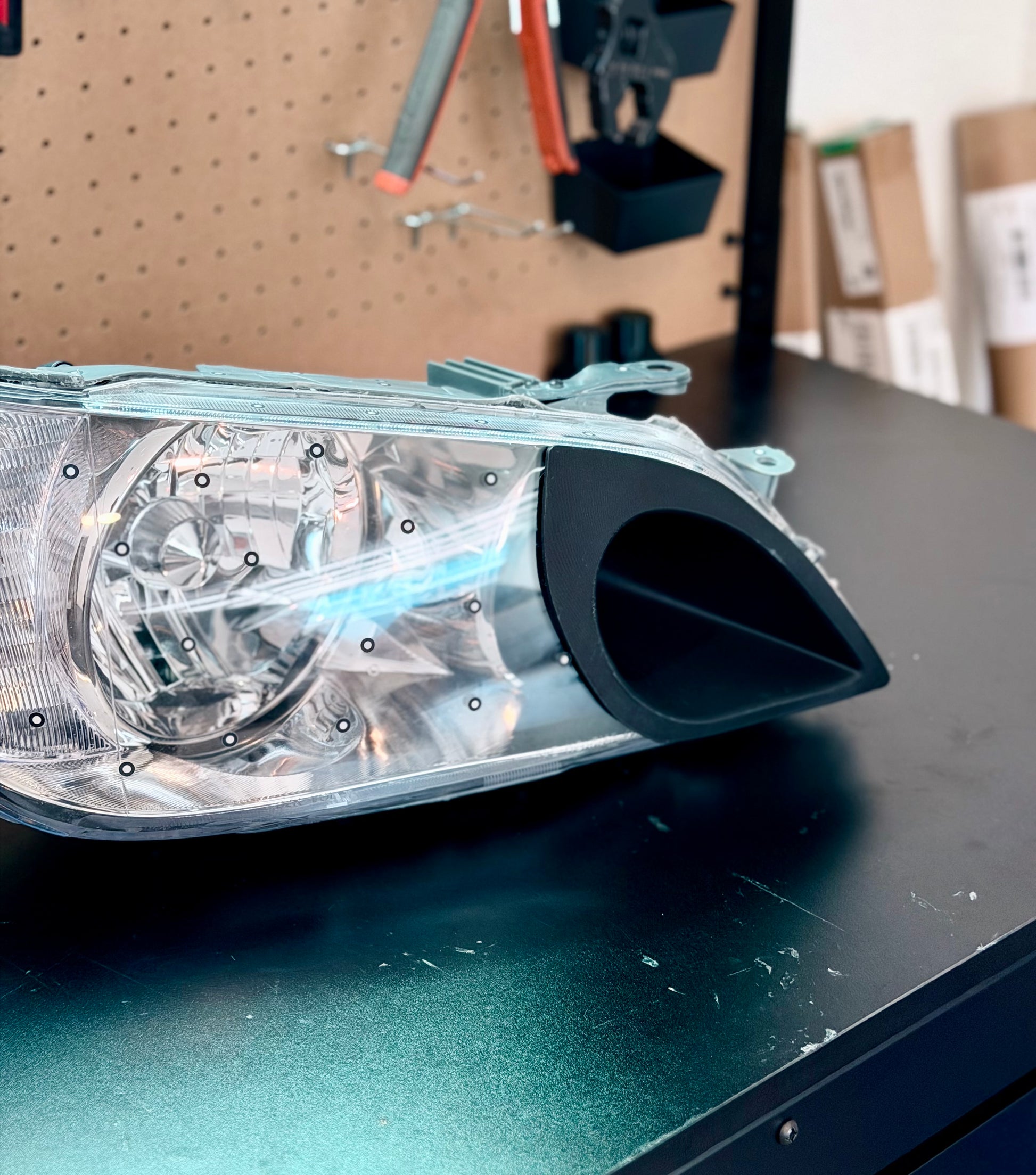

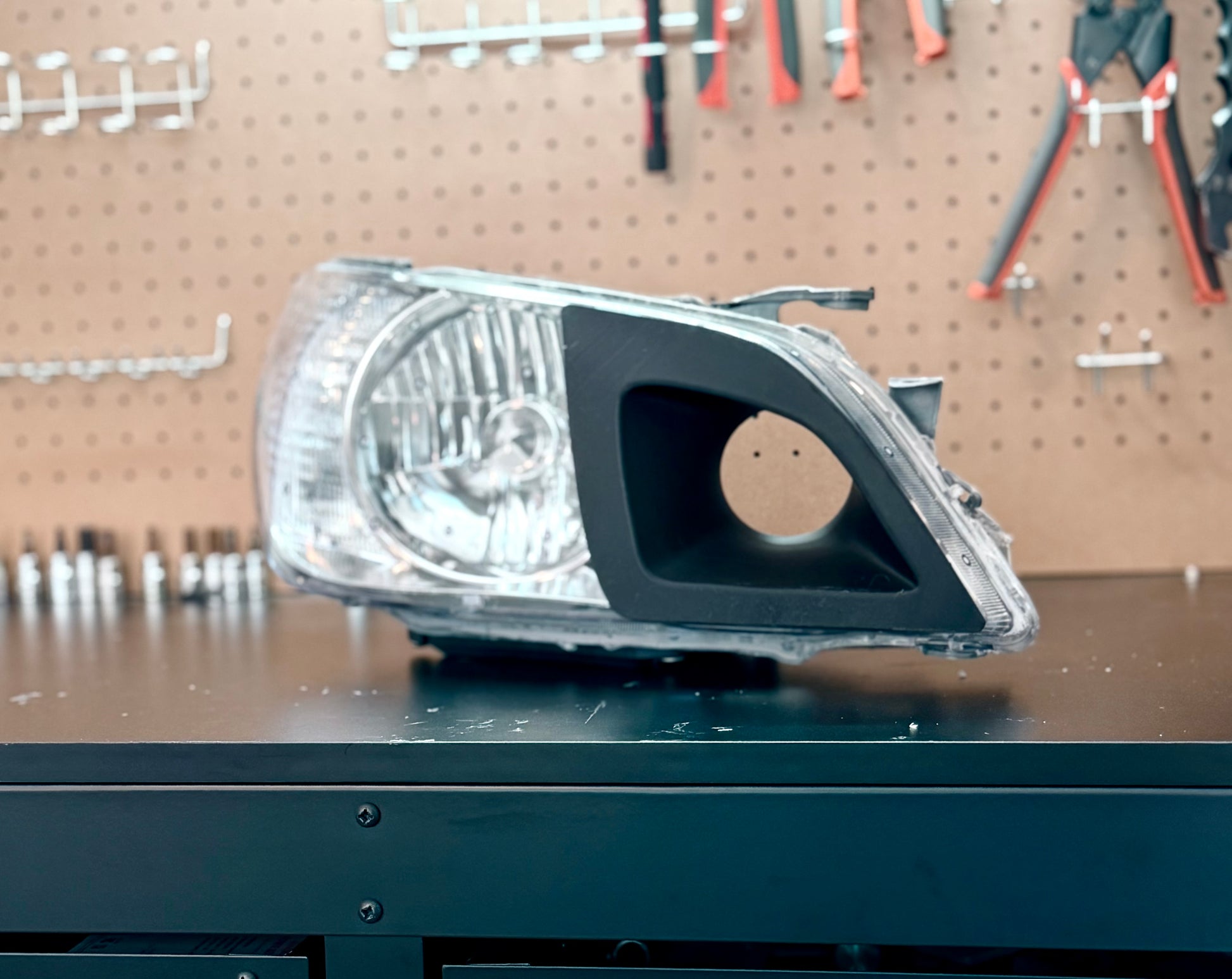

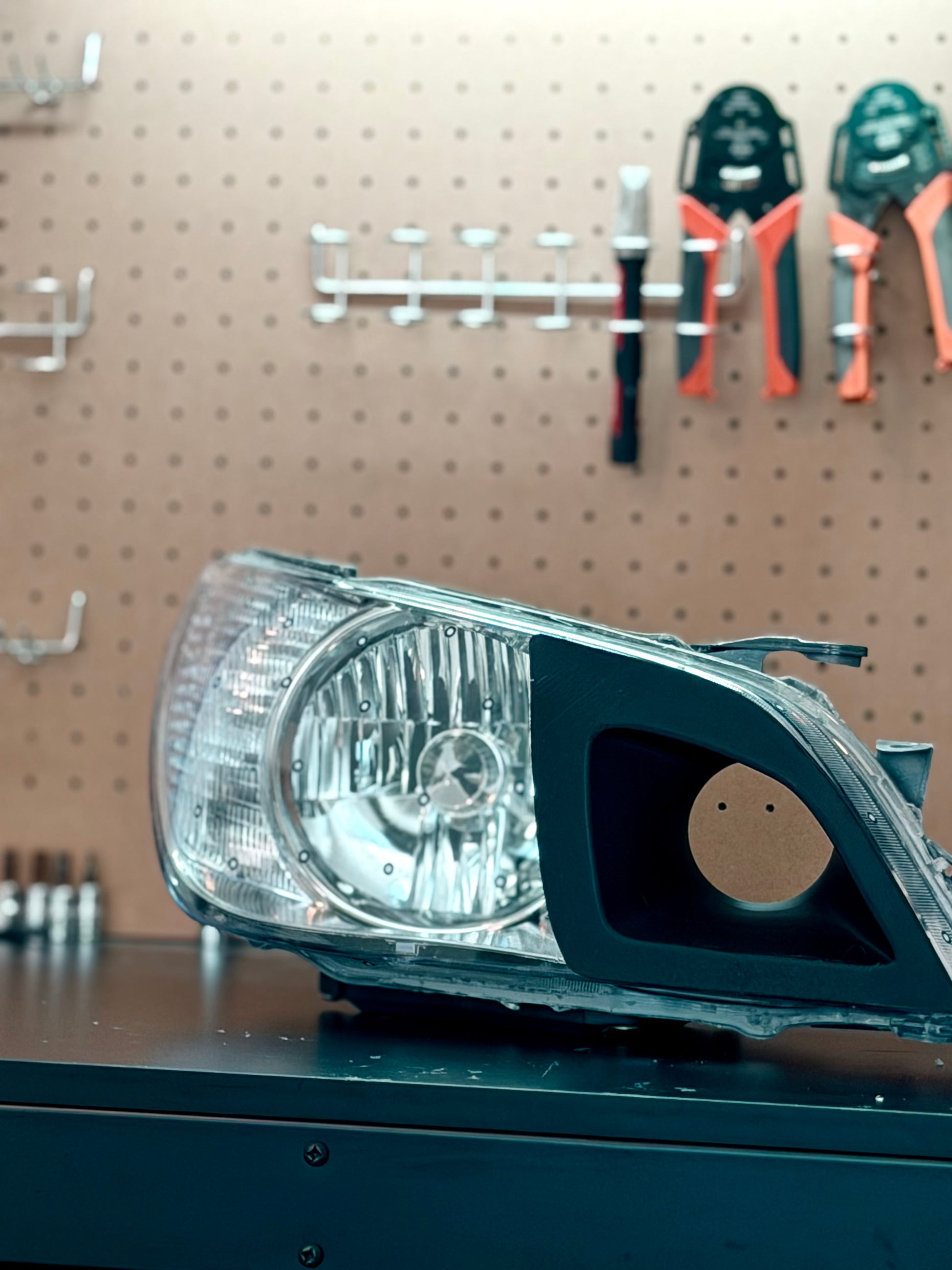

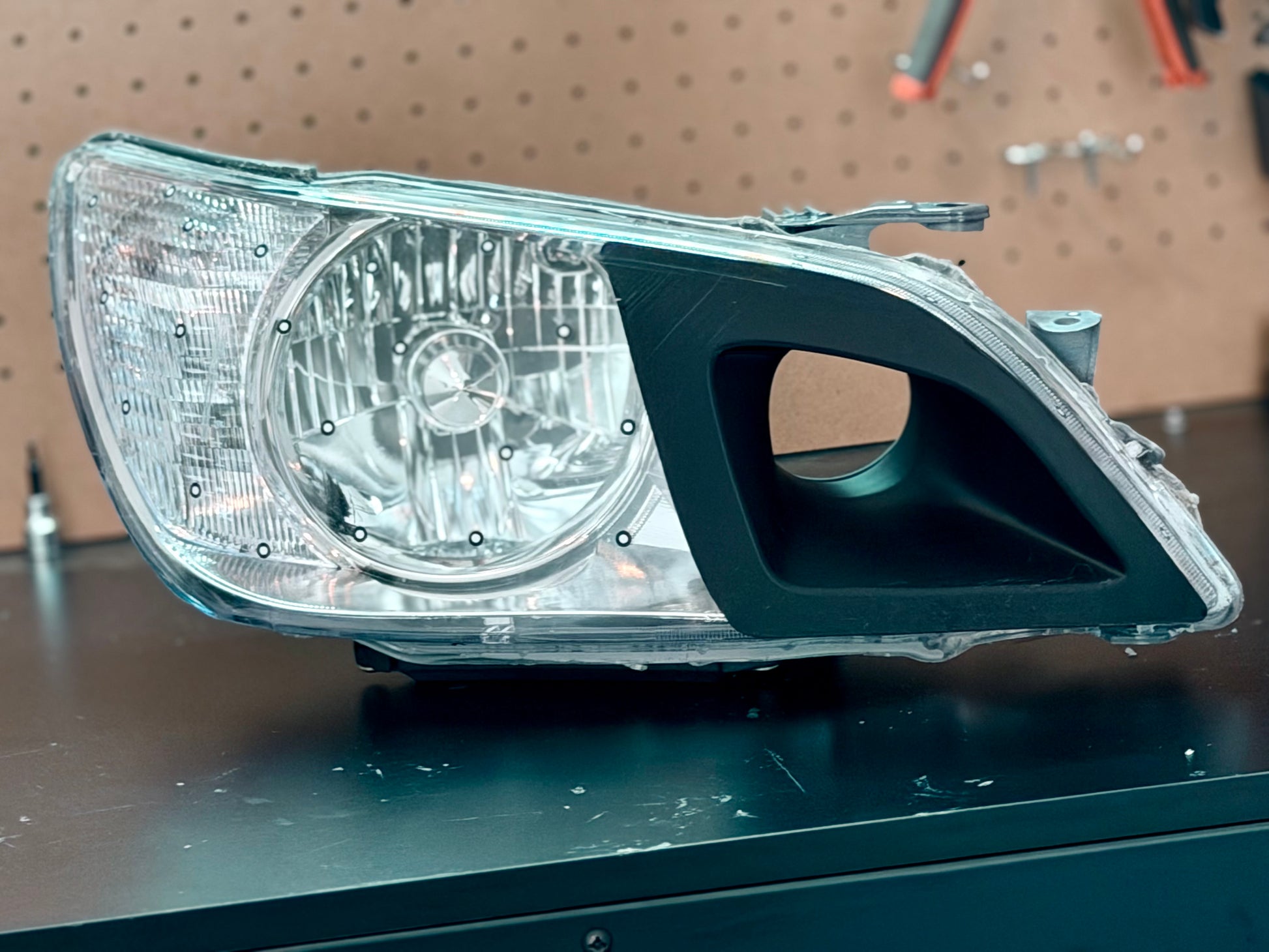

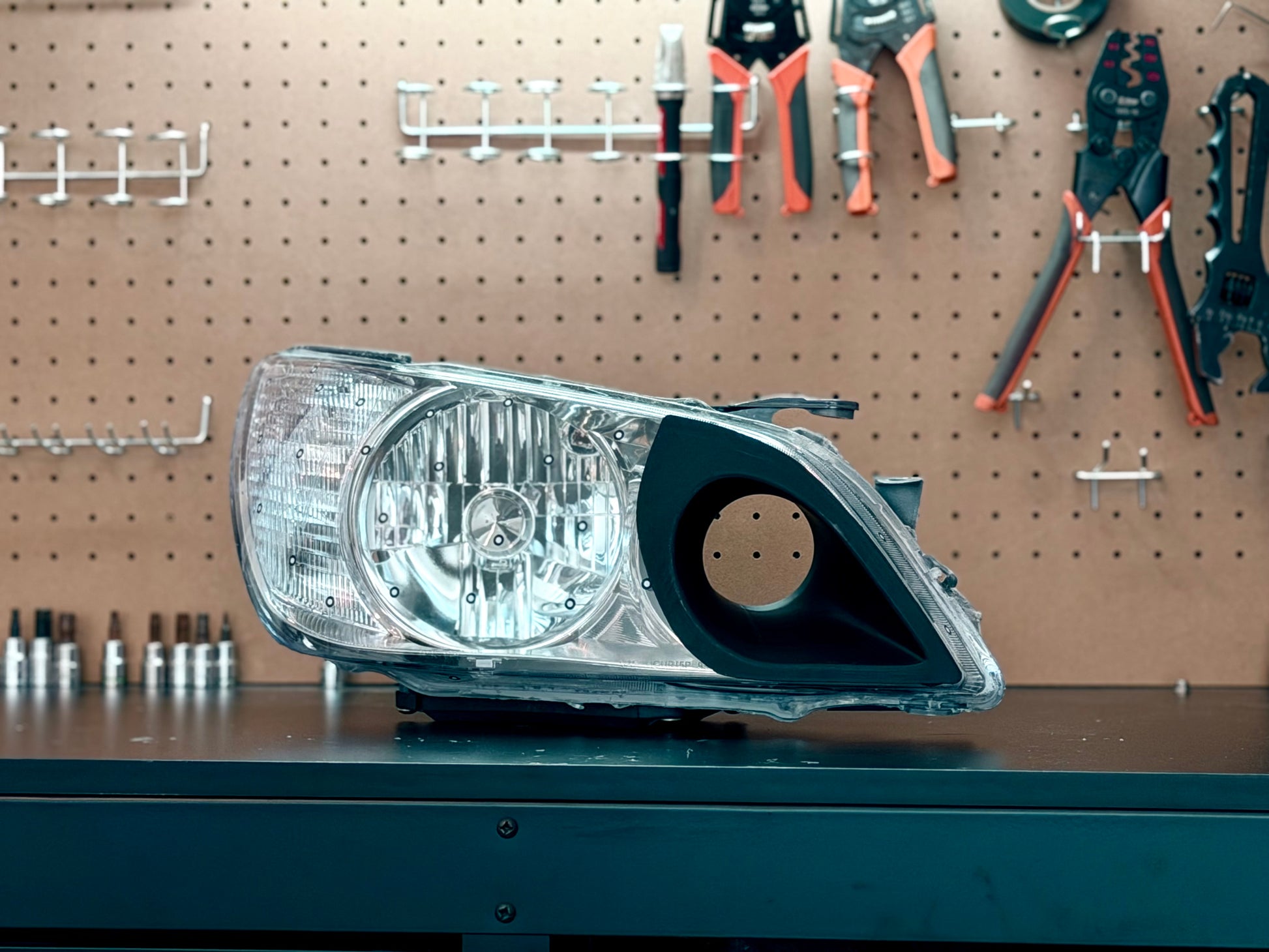

We’re excited to offer the 1st-generation IS and Altezza community a headlight high-beam intake air ram with multiple customization options.
Heat is the enemy of horsepower. Allowing your turbo to draw in hot engine bay air results in a significant loss of power. To solve this issue, we highly recommend this upgrade for IS/Altezza owners looking to maximize performance. By retrofitting a stylish headlight intake air ram, you can reduce heat soak and improve overall airflow efficiency.

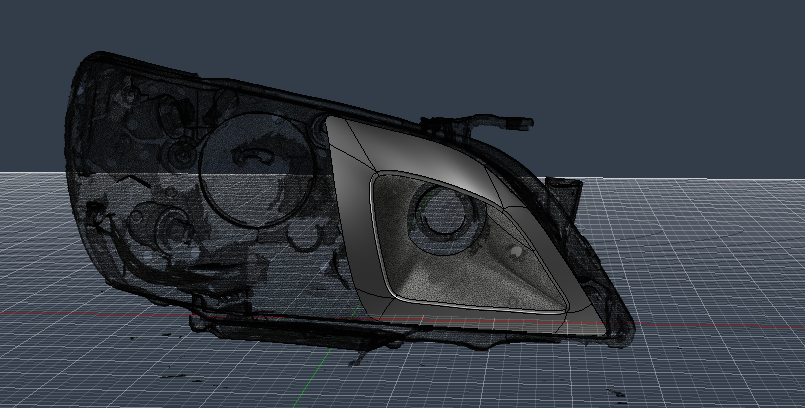

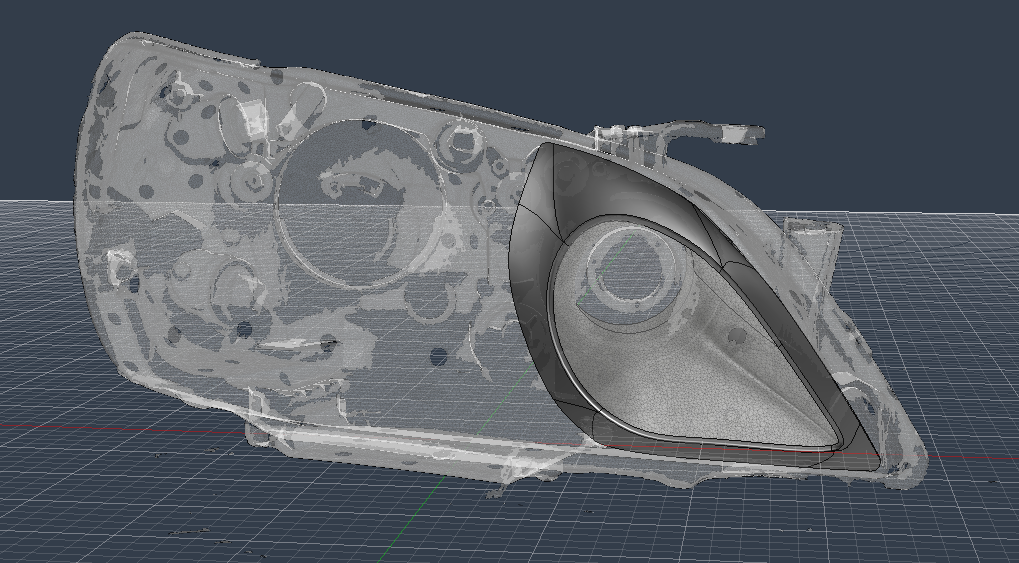

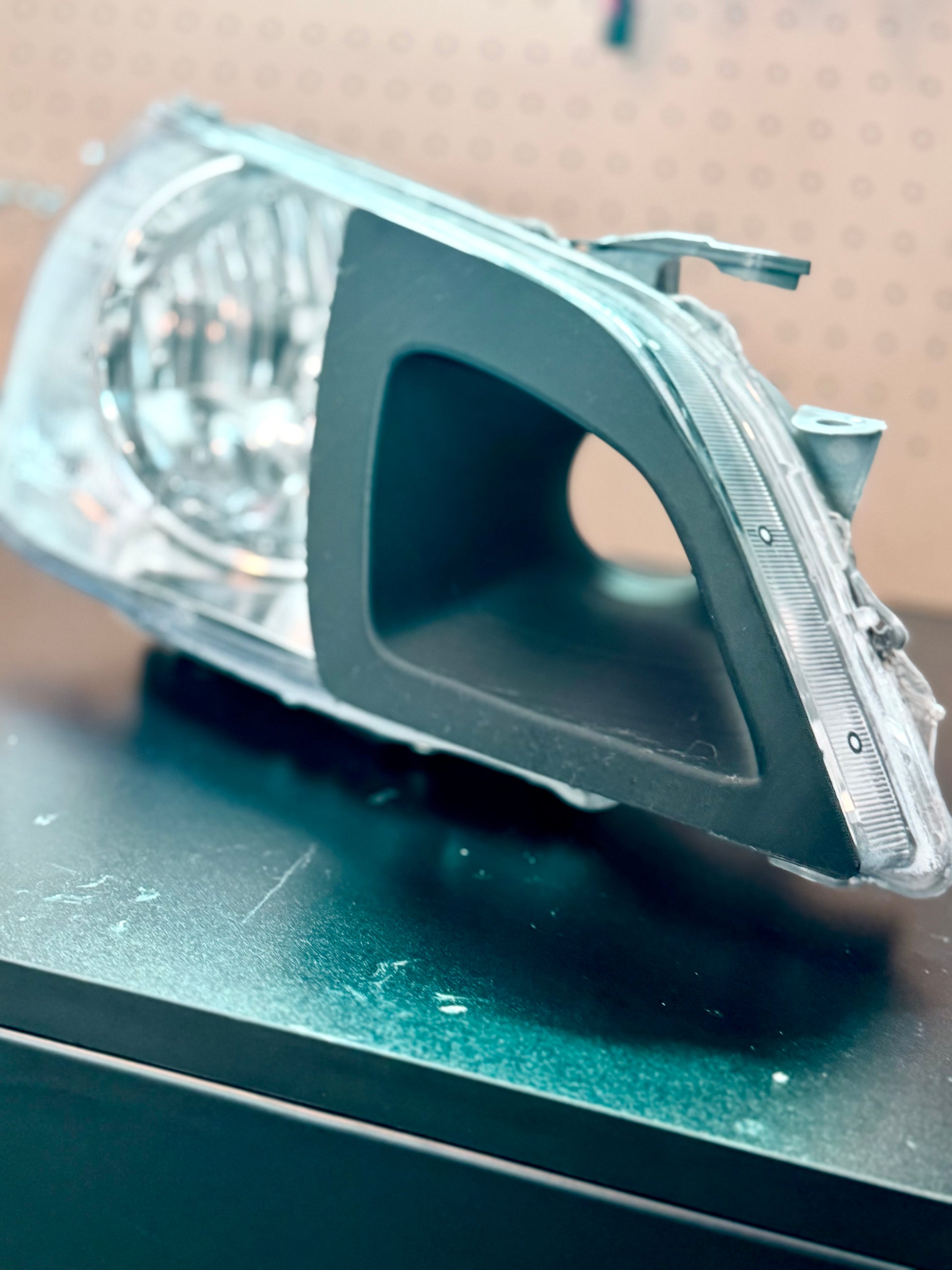

This product includes options for different headlight intake opening sizes. In addition to the standard design, an optional LED light pod for the high beam features a unique opening configuration.
Specifications:
Intake opening: approximately 2.5 inches

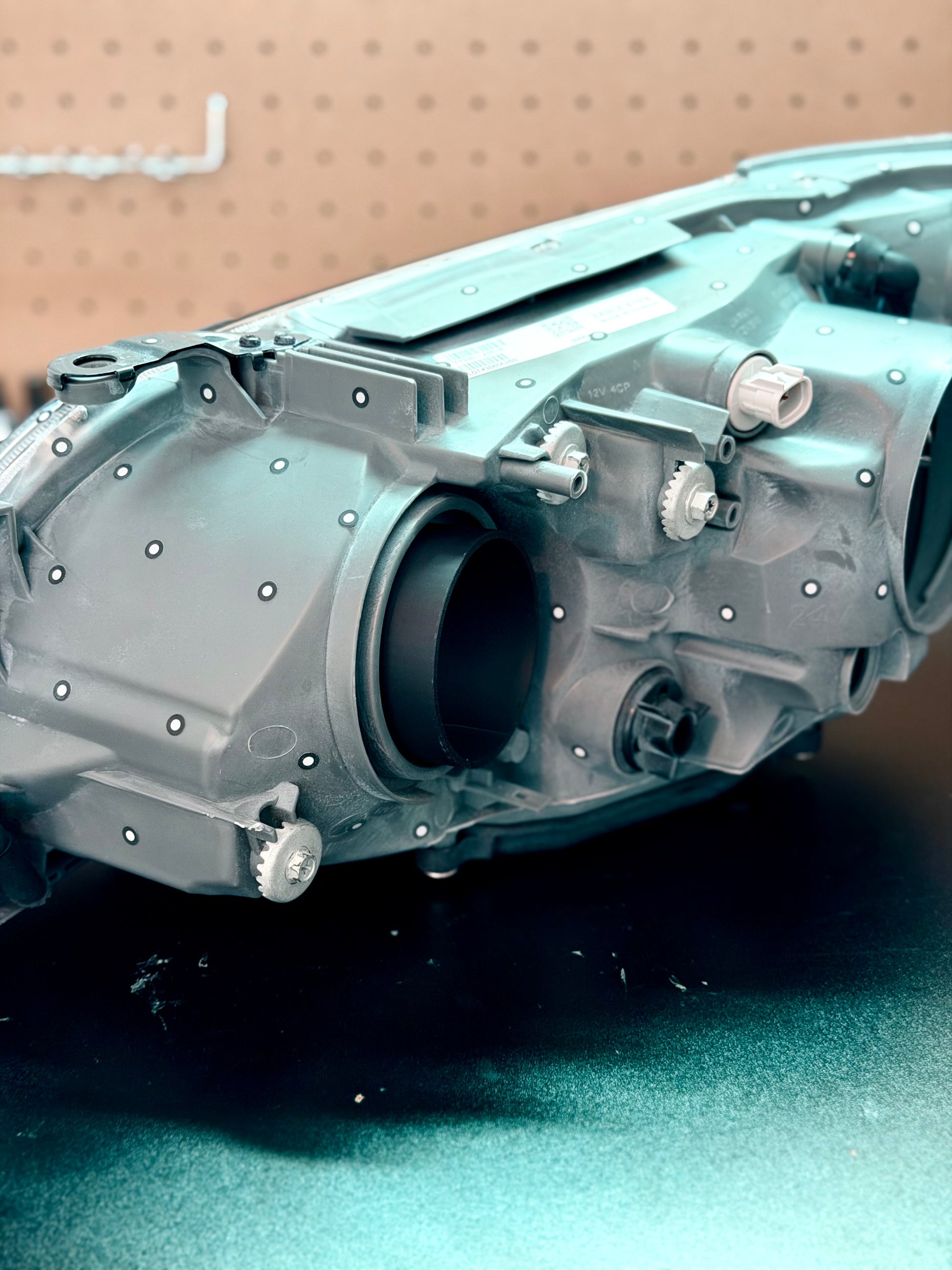

Outlet tube extension: approximately 2 inches
Material: ASA-CF
Installation Guide:
Use a heat gun or place the headlight in an oven to soften the sealant.
Remove the headlight lens from the housing, then remove the light bezel.

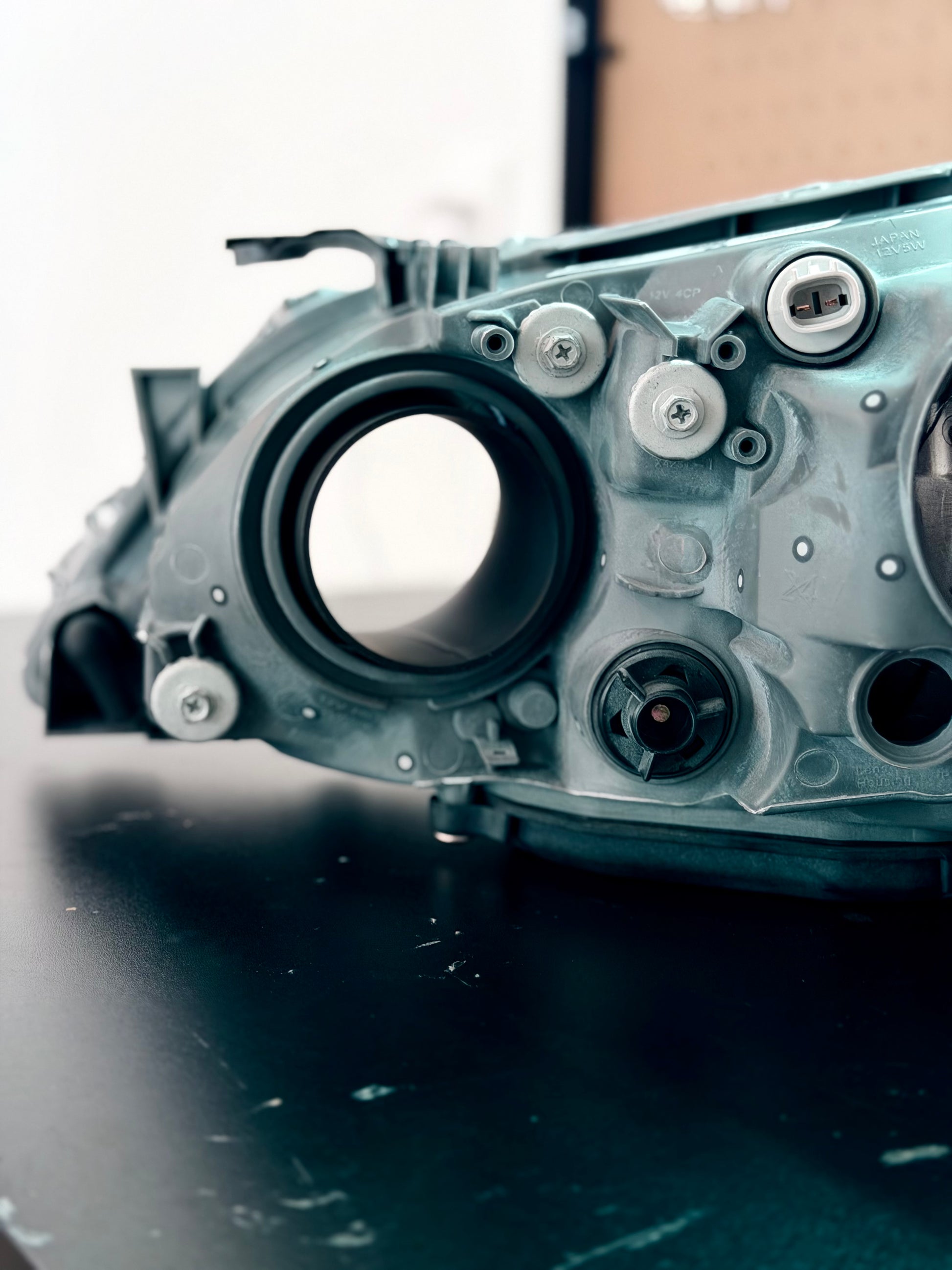

Remove the internal high-beam reflector housing.
Cut the headlight lens opening using the provided template. (Ultrasonic cutters are recommended. Use caution with other tools.)
Mask the area where the air ram will be mounted.
Apply adhesive to the mounting surface and position the air ram. Use a clamp to hold it in place until fully cured.
Reseal the headlight lens back onto the housing.
Note Due to high demand, please allow 1–2 weeks for production.
This headlight modification is for off-road vehicles only.
