Lexus SC300/400 3rd Gen Toyota Soarer High Beam Headlight Air Ram

MK1 Motorsport Lexus SC300/SC400 & 3rd Gen Toyota Soarer High Beam Headlight Air Ram

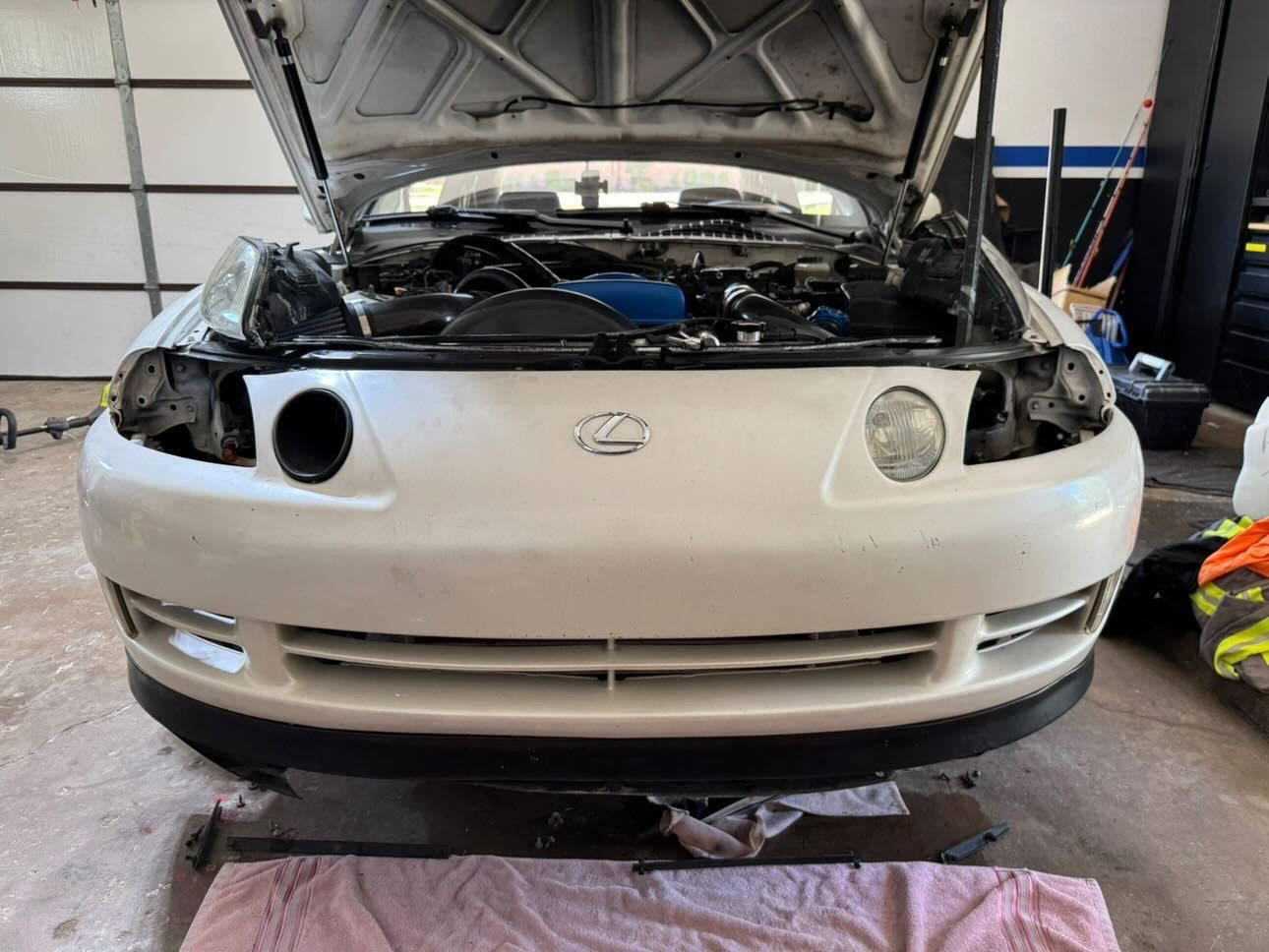

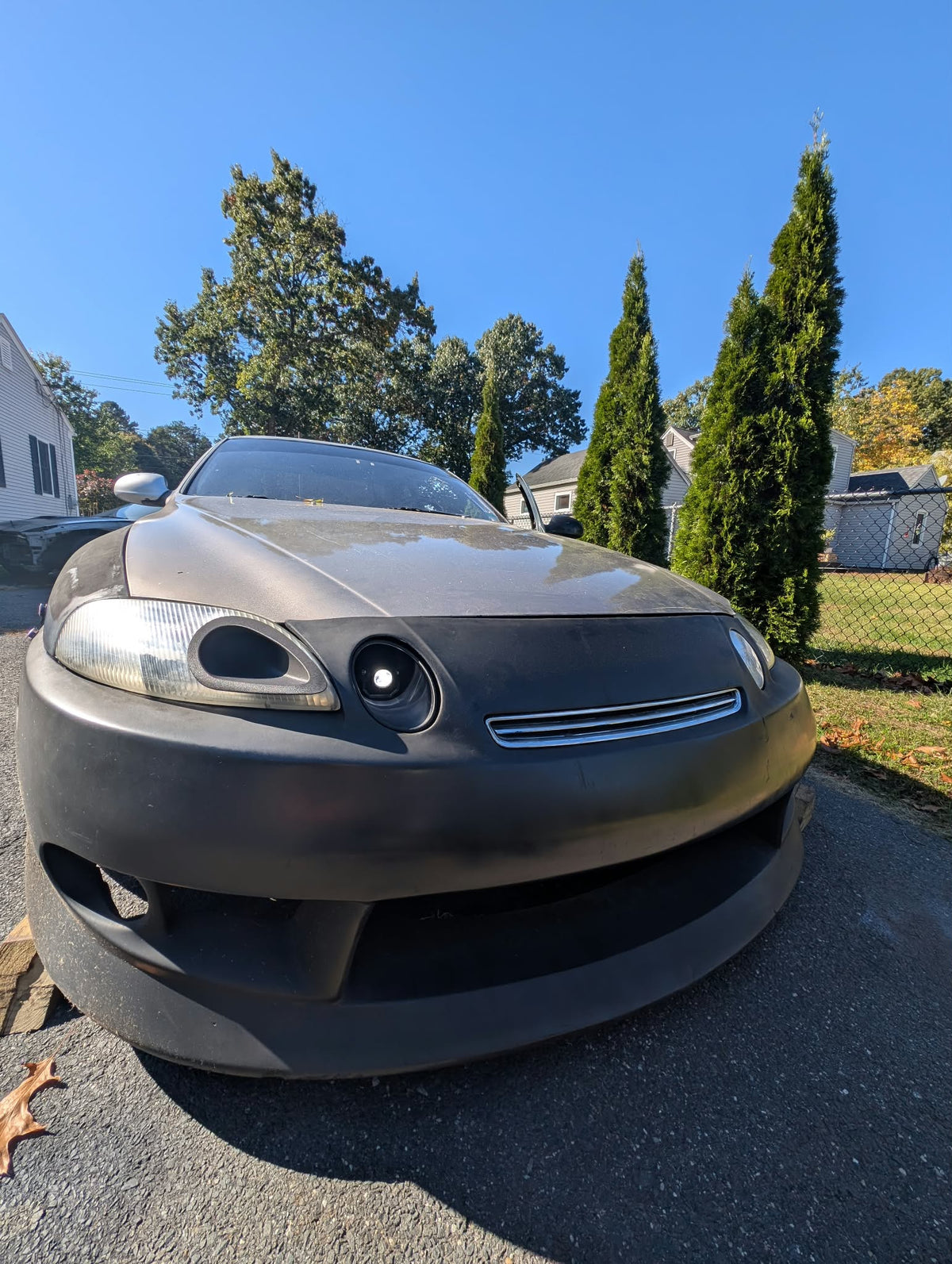

Upgrade your factory high beam with the MK1 Motorsport High Beam Air Ram, designed specifically for the Lexus SC300, SC400, and 3rd Generation Toyota Soarer. This direct replacement converts the factory high beam opening into a functional air inlet, increasing airflow into the engine bay while maintaining an OEM-inspired appearance.

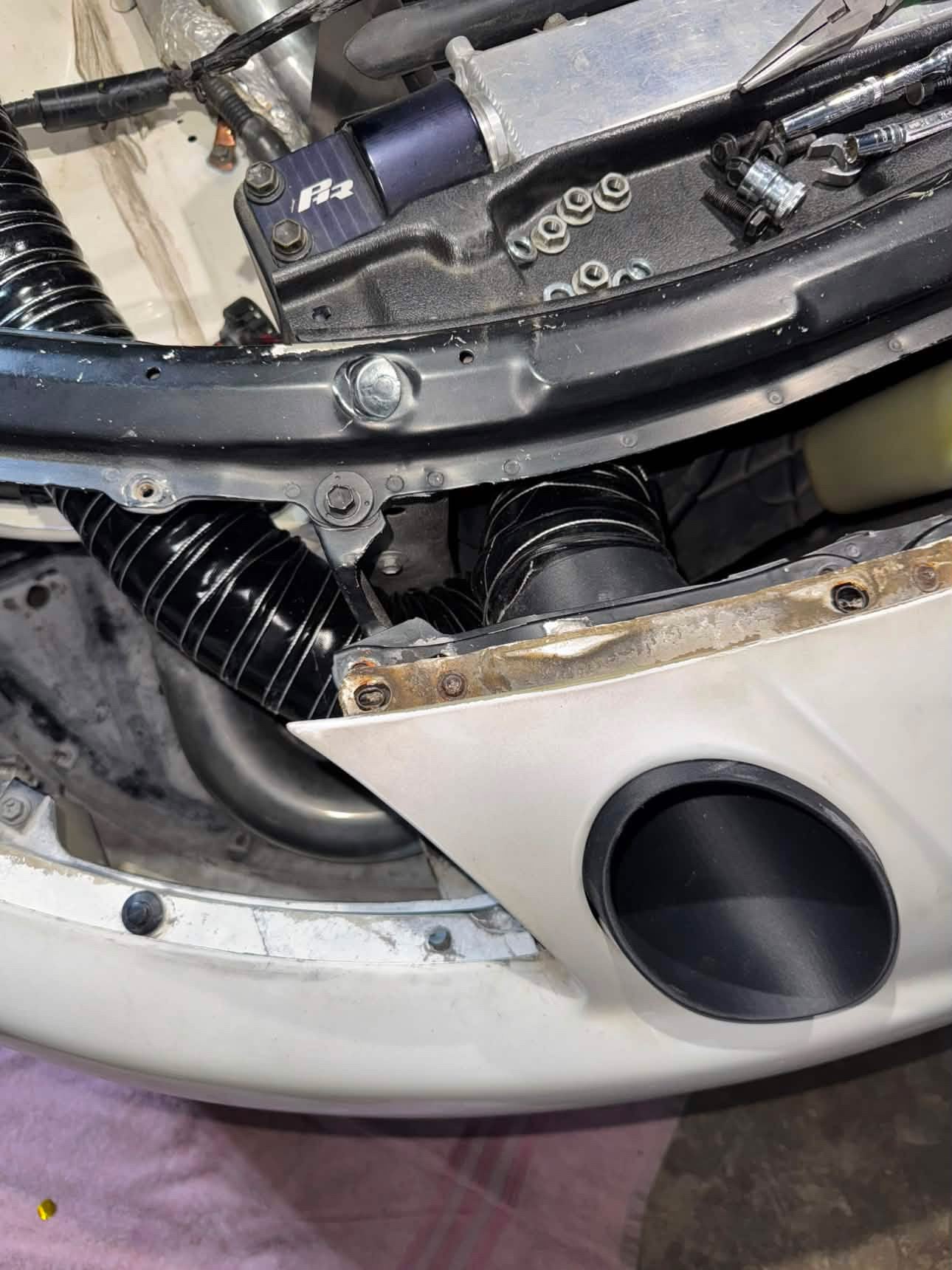

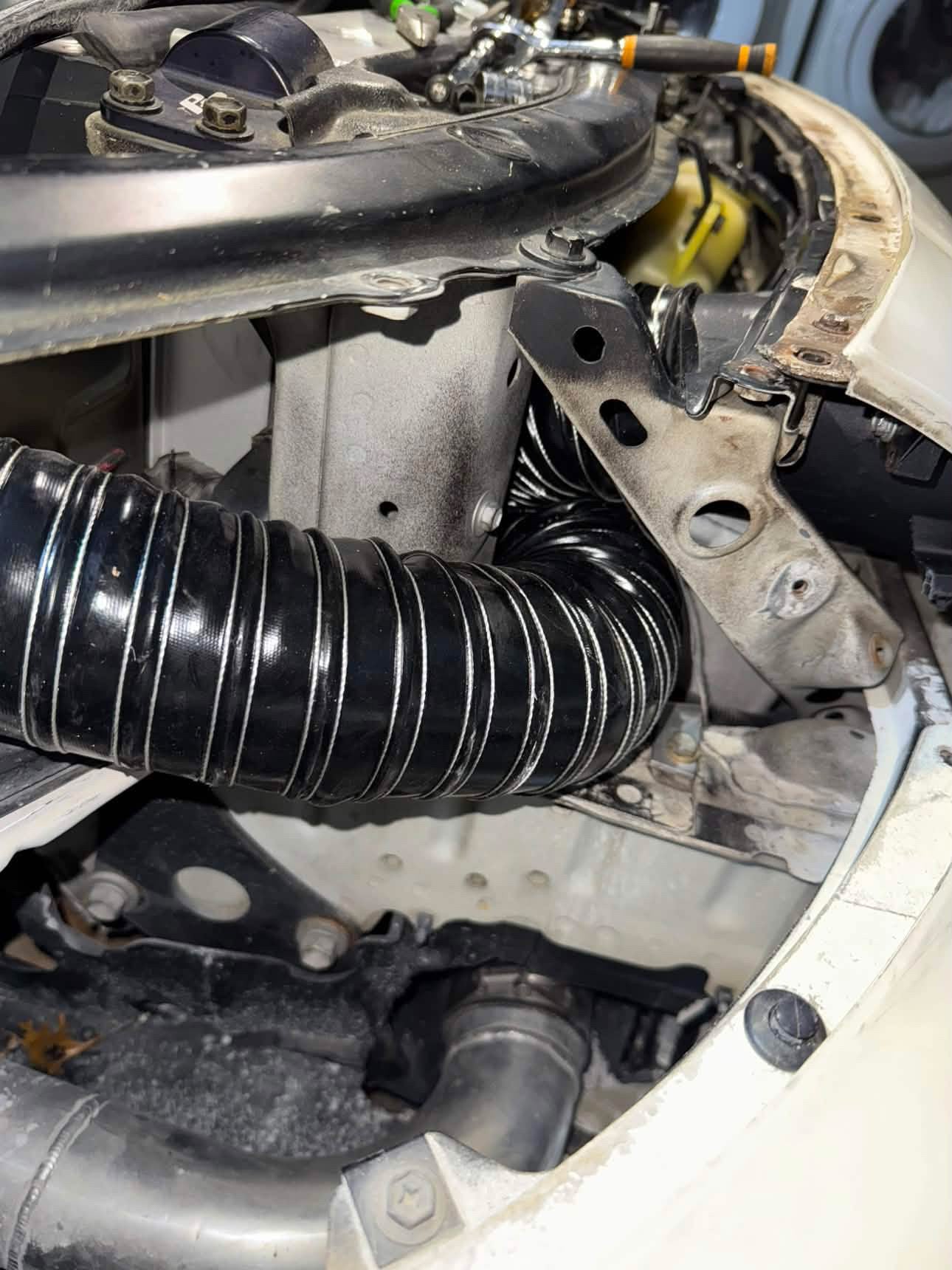

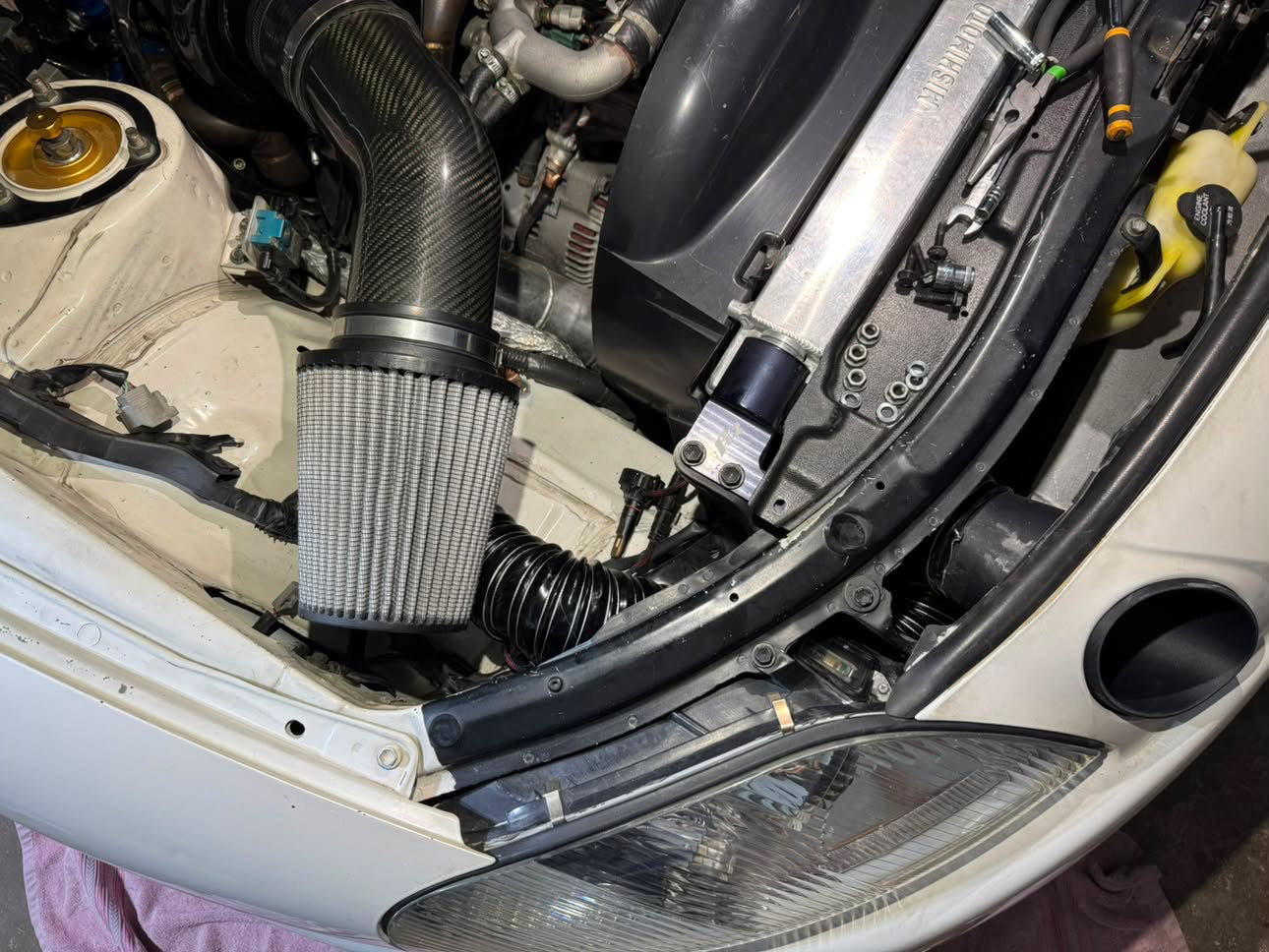

For JZ-powered vehicles, the forward-facing air ram can be connected to the turbo inlet using a high-temperature silicone brake cooling hose. The duct is routed underneath the low beam headlight, providing a direct source of cool outside air to the intake system.

An optional dual-color LED projector pod is also available. The LED assembly includes a plug-and-play harness that connects directly to the factory 9006 (HB4) high beam connector for a clean and simple installation.

Features

- Replaces the factory high beam with a functional air ram

- Improves airflow into the engine bay

-Can be ducted directly to the turbo intake on JZ engine applications

- Optional dual-color LED projector pod

- Plug-and-play 9006 (HB4) wiring harness included with LED option

- Reuses the factory high beam mounting bracket and hardware

- OEM-style fit and appearance

Specifications

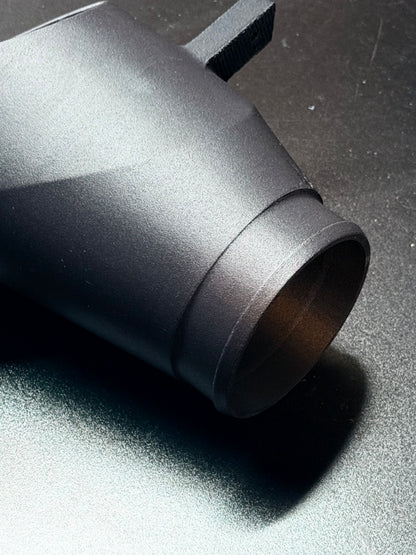

- Intake Opening Diameter: Approximately 3 inches

- Material: ASA-CF (Carbon Fiber Reinforced ASA)

- Waterproof Rating: IP67 LED

- Factory Connector: 9006 (HB4)

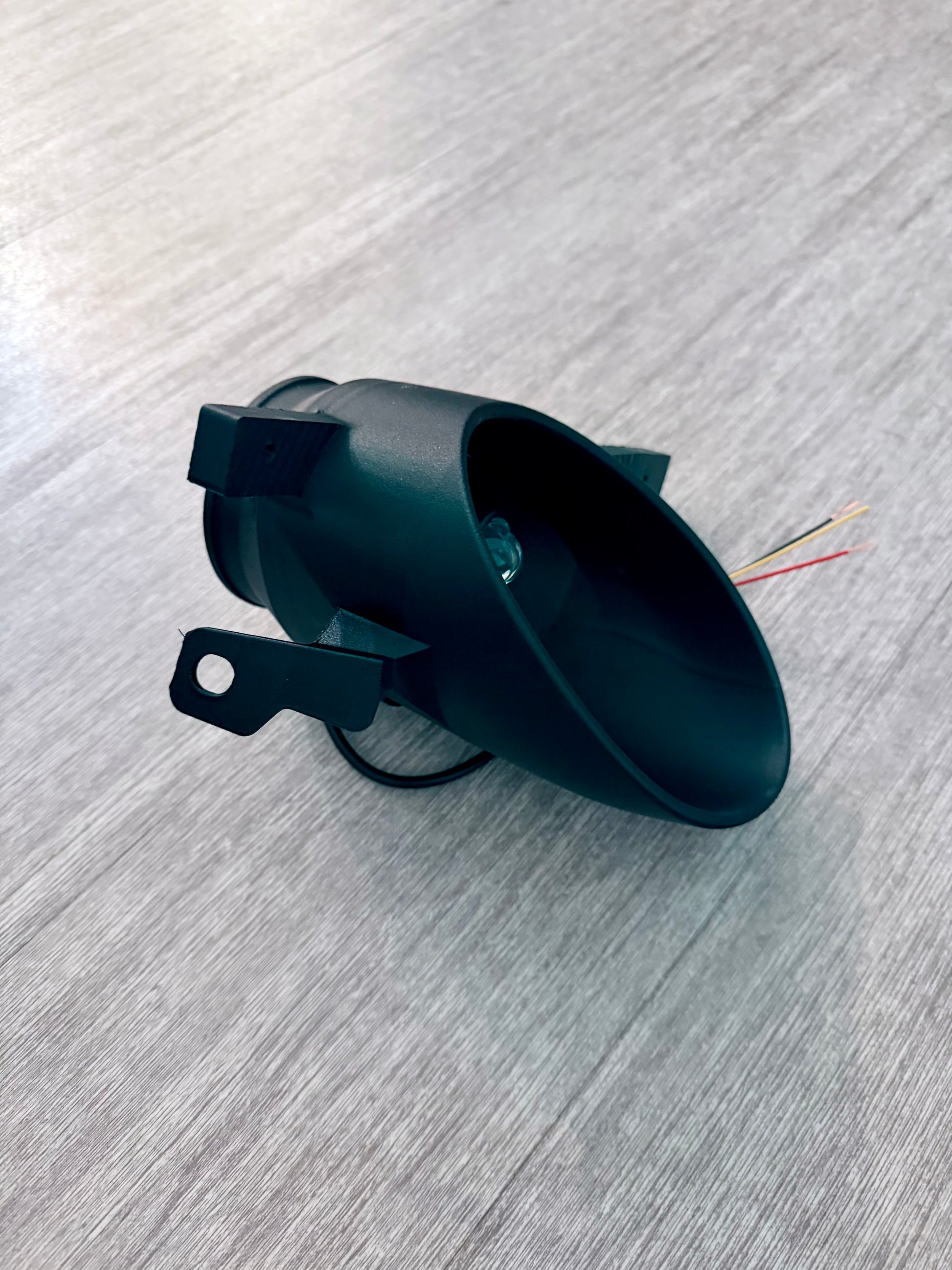

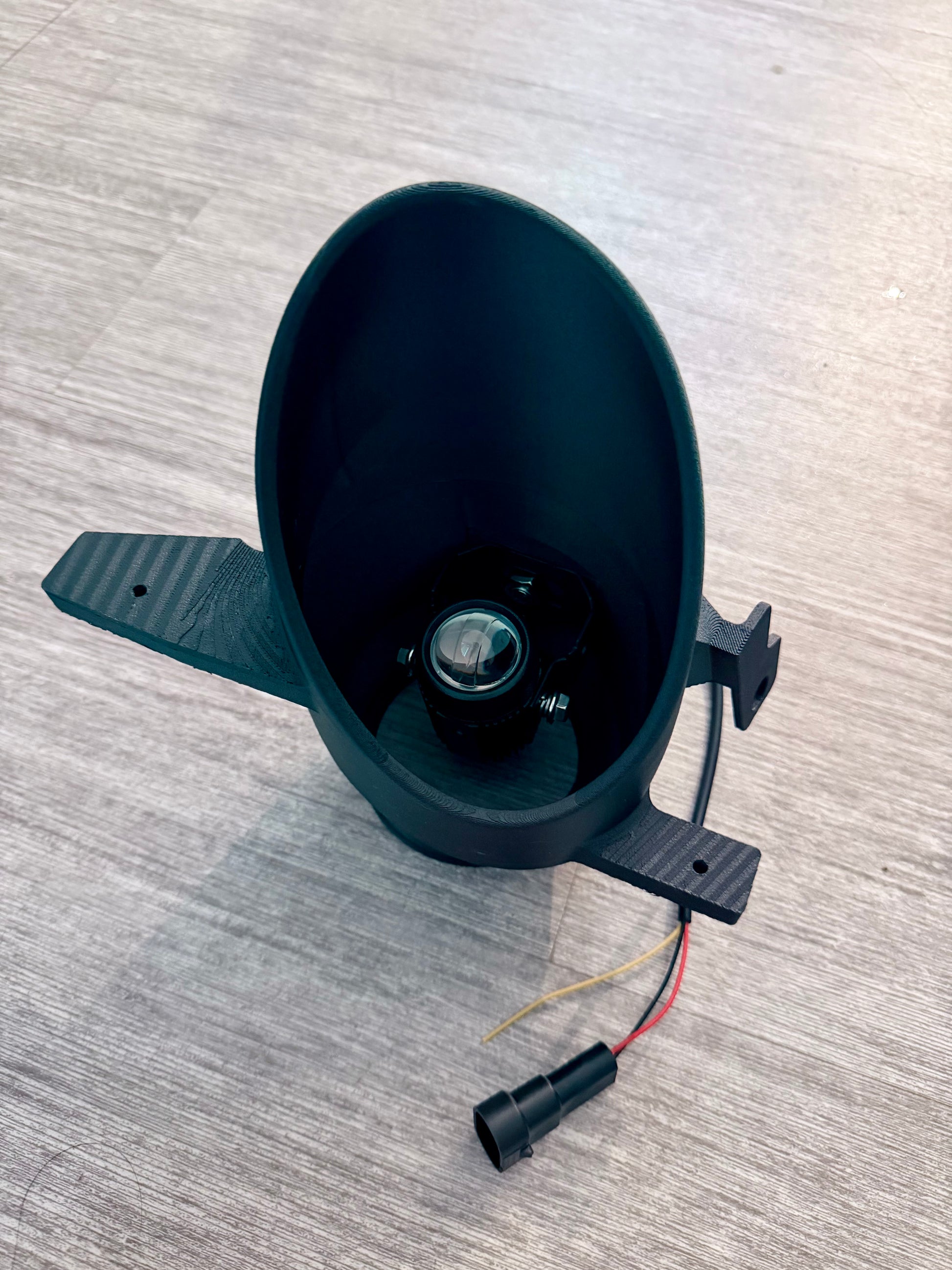

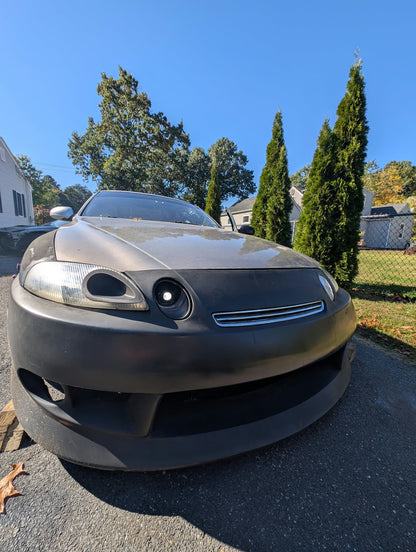

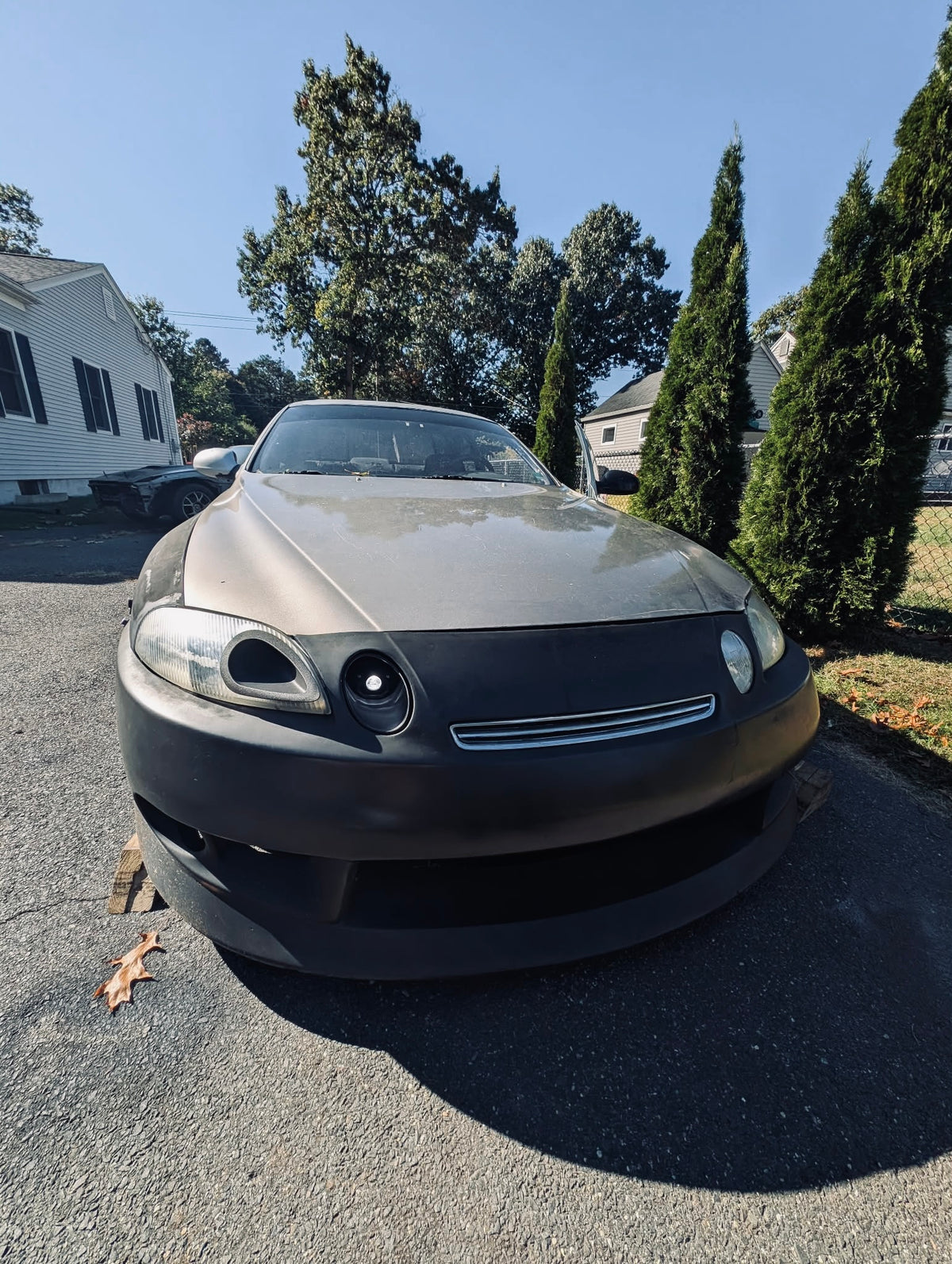

LED Projector Pod

- White LED — High Beam Mode

- Yellow LED — Auxiliary/Low Beam Mode (user configurable)

- Waterproof Rating: IP67 LED

- Factory Connector: 9006 (HB4)

Material

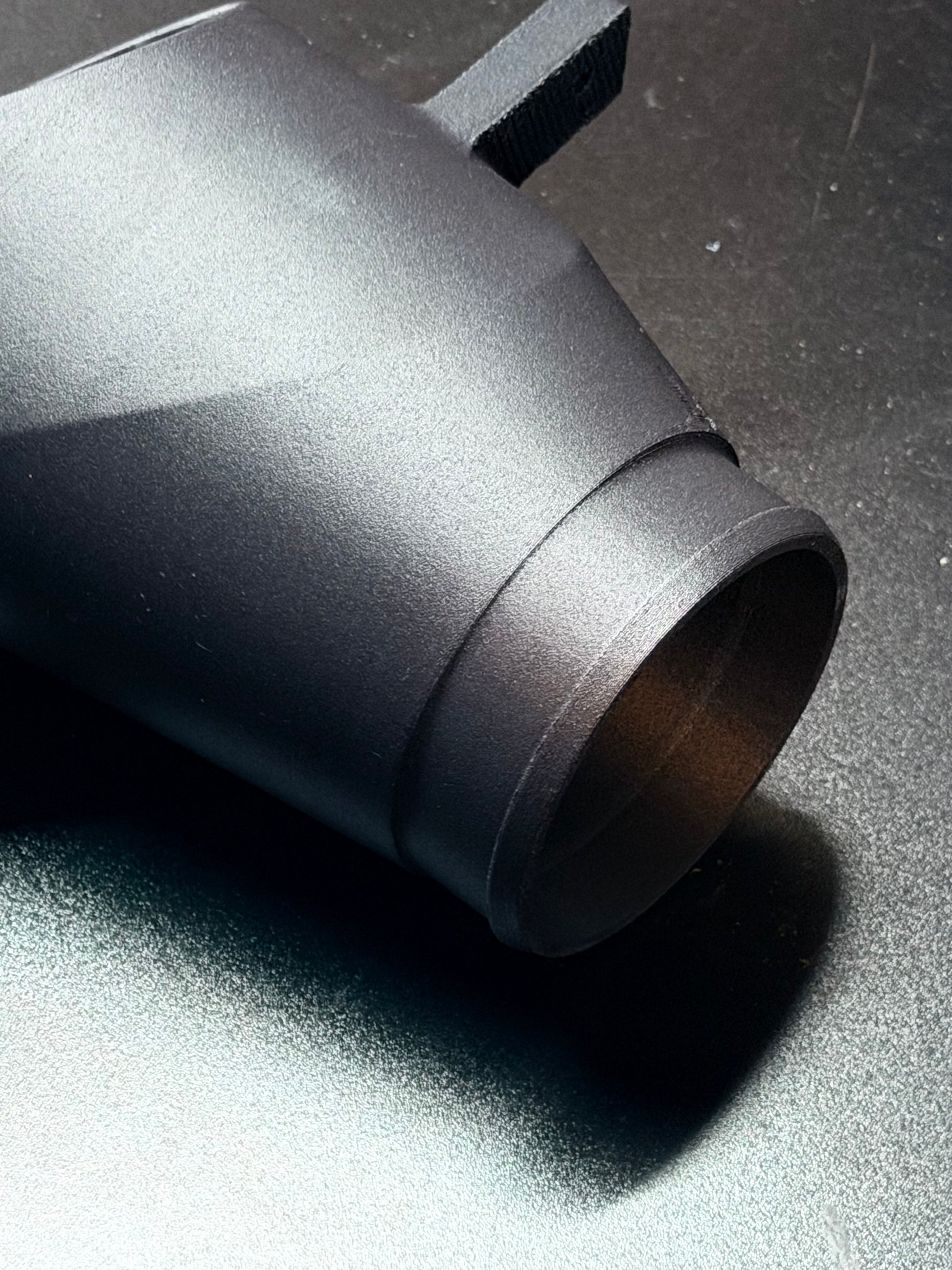

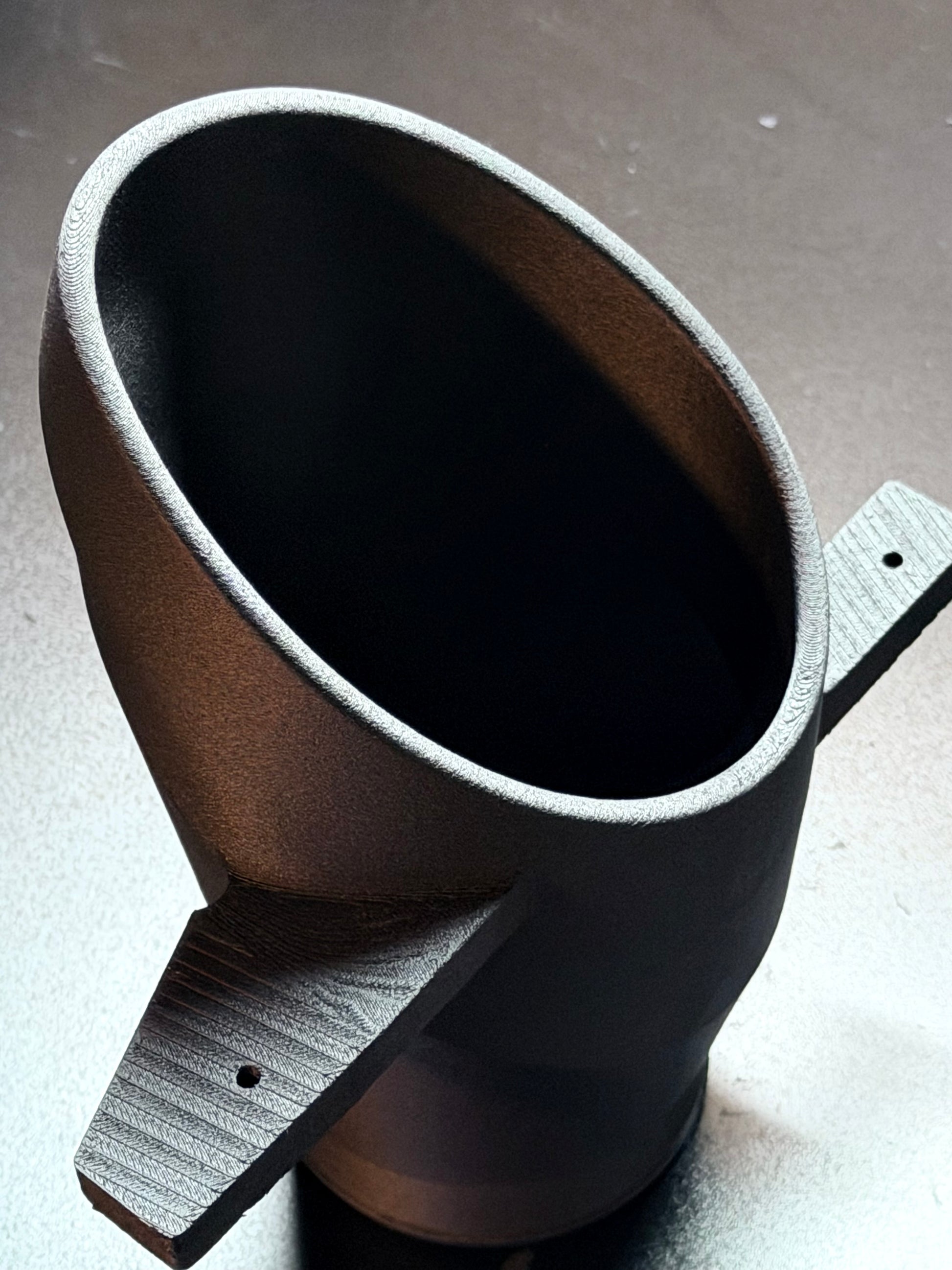

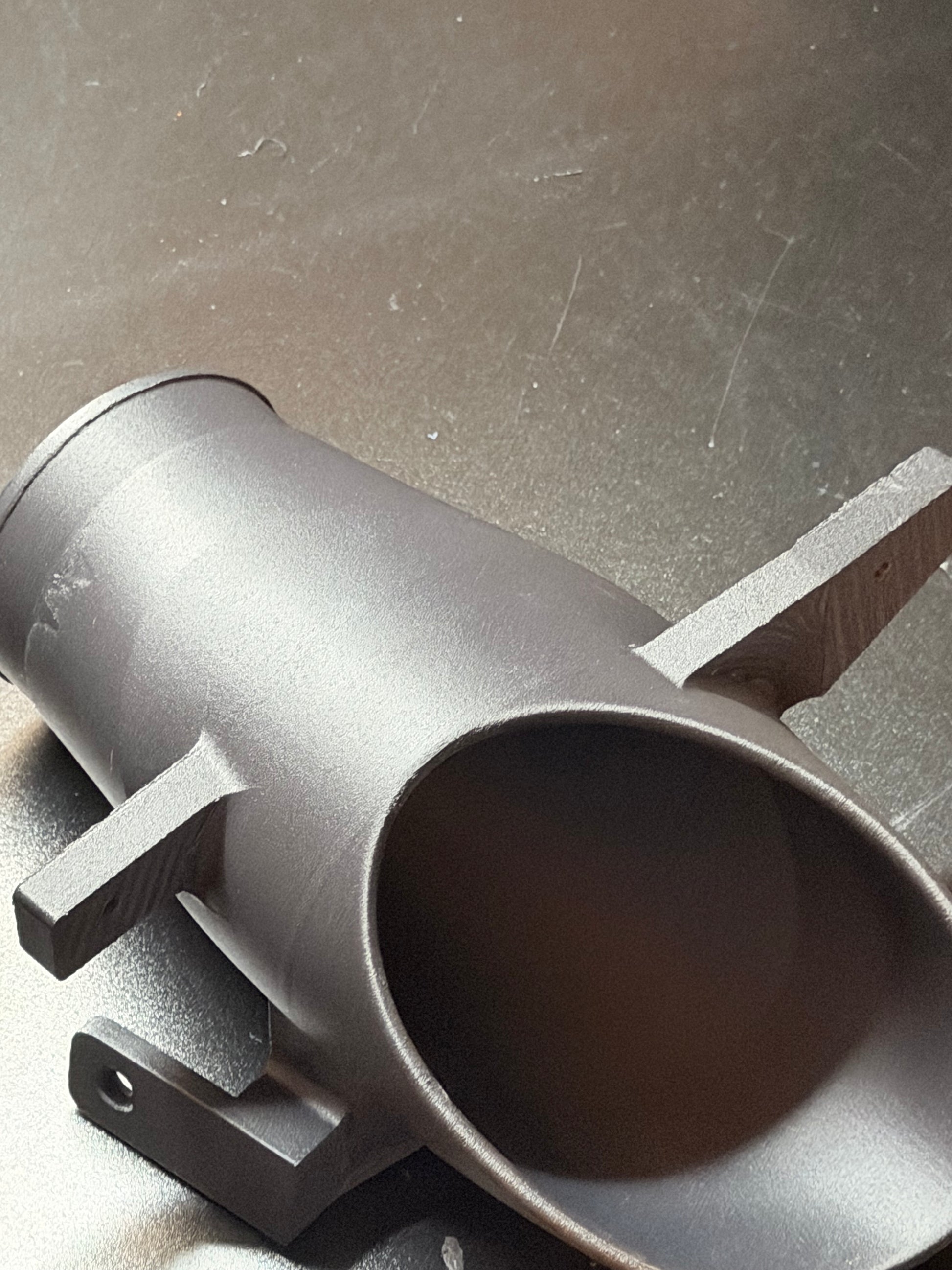

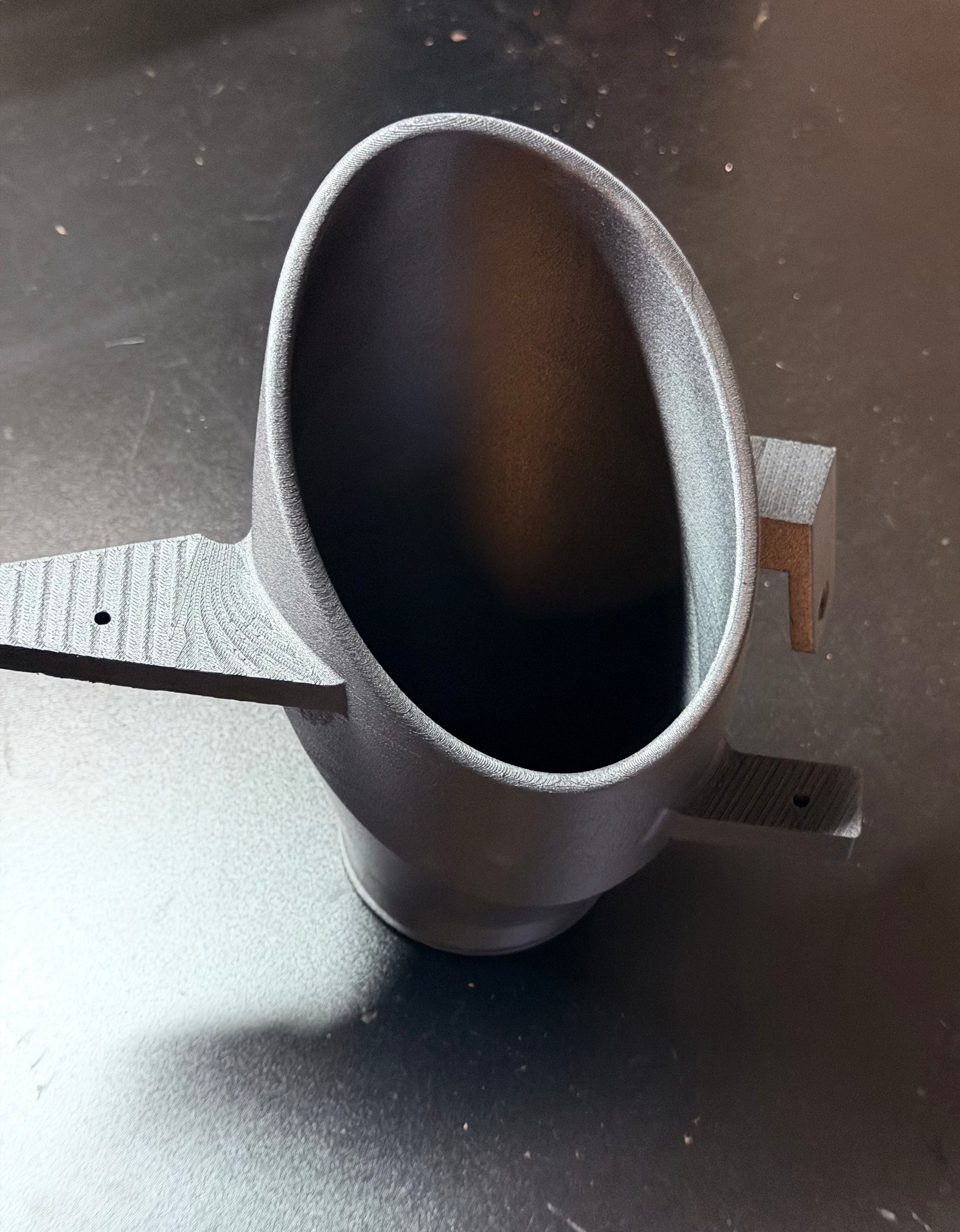

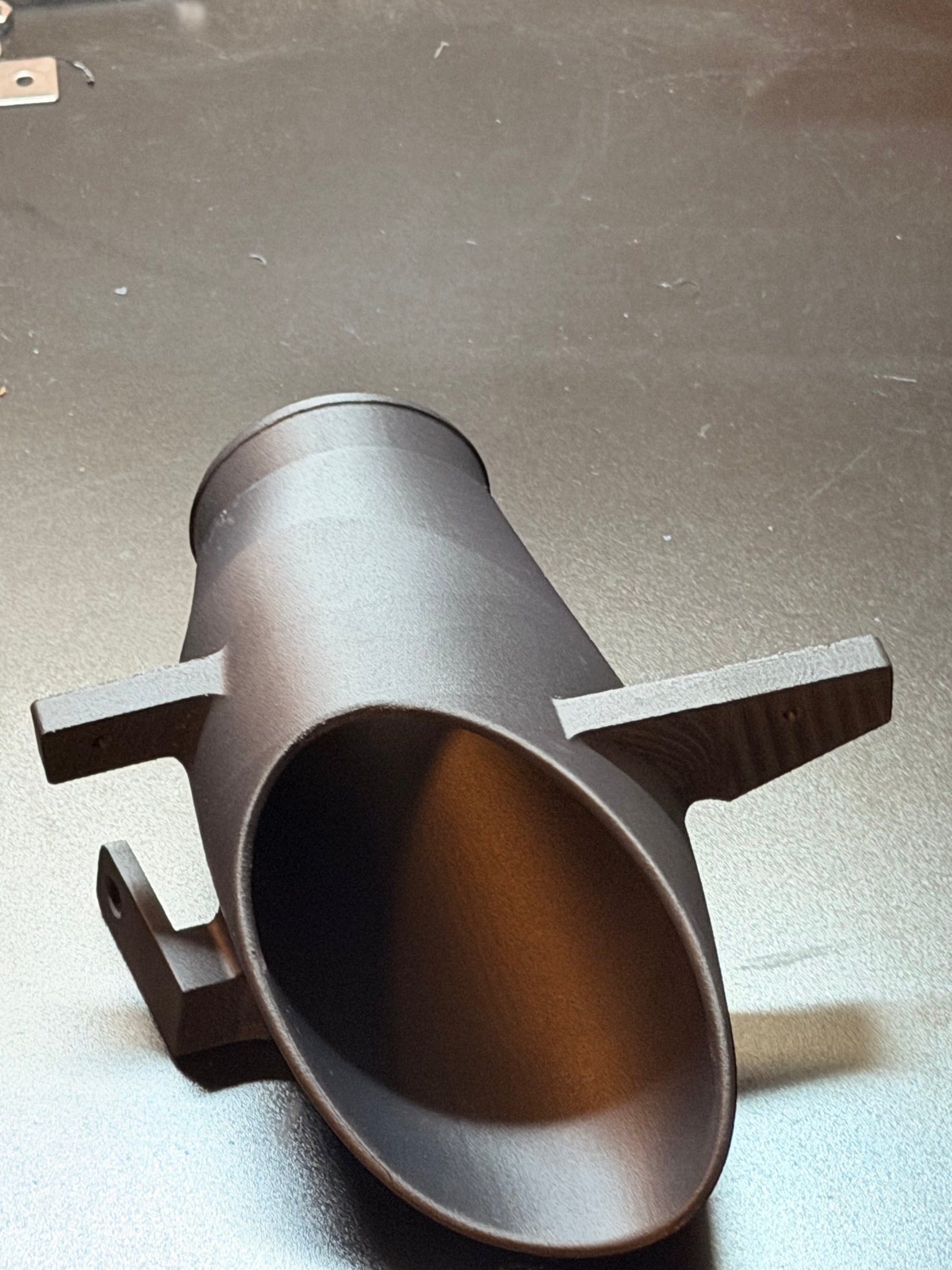

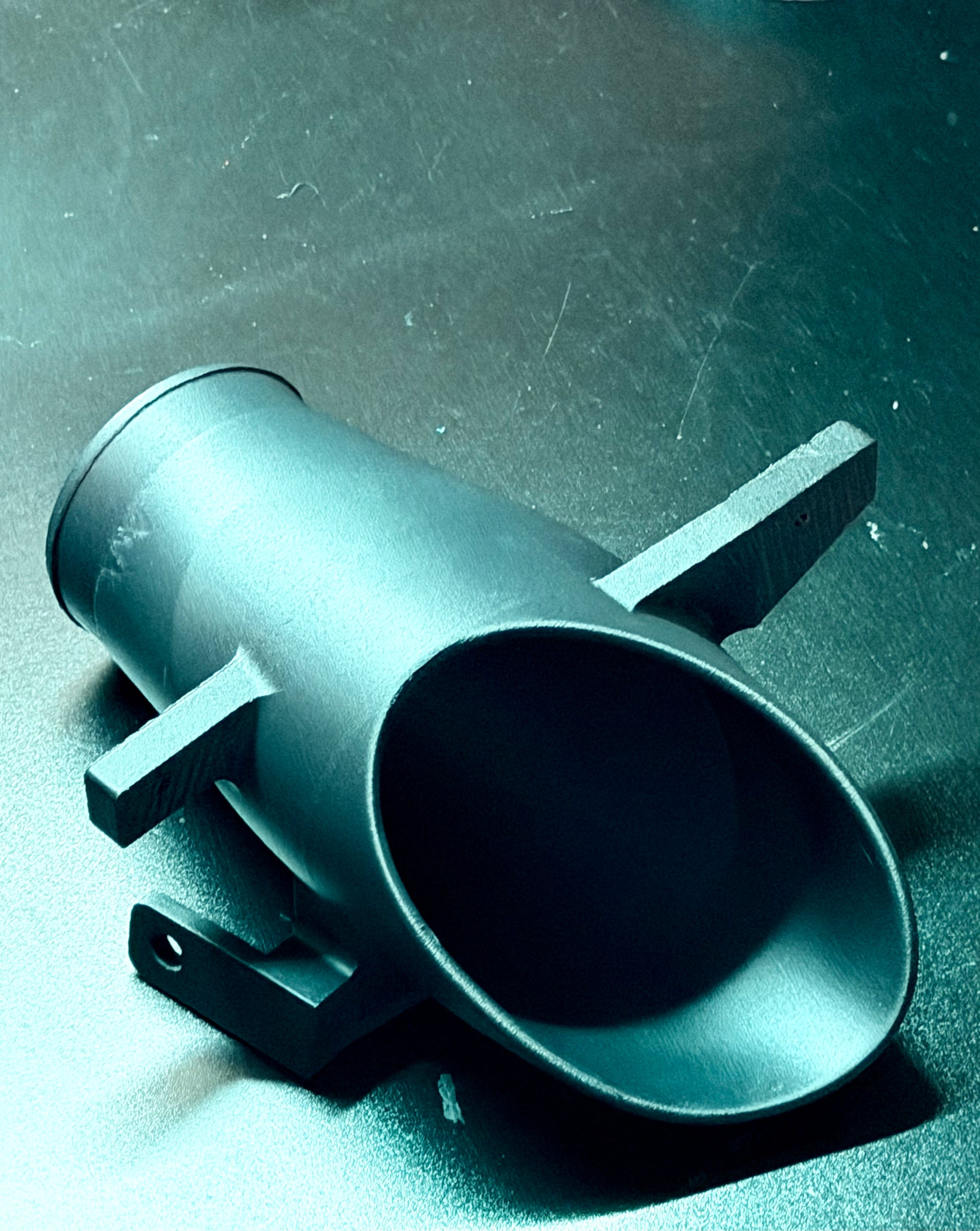

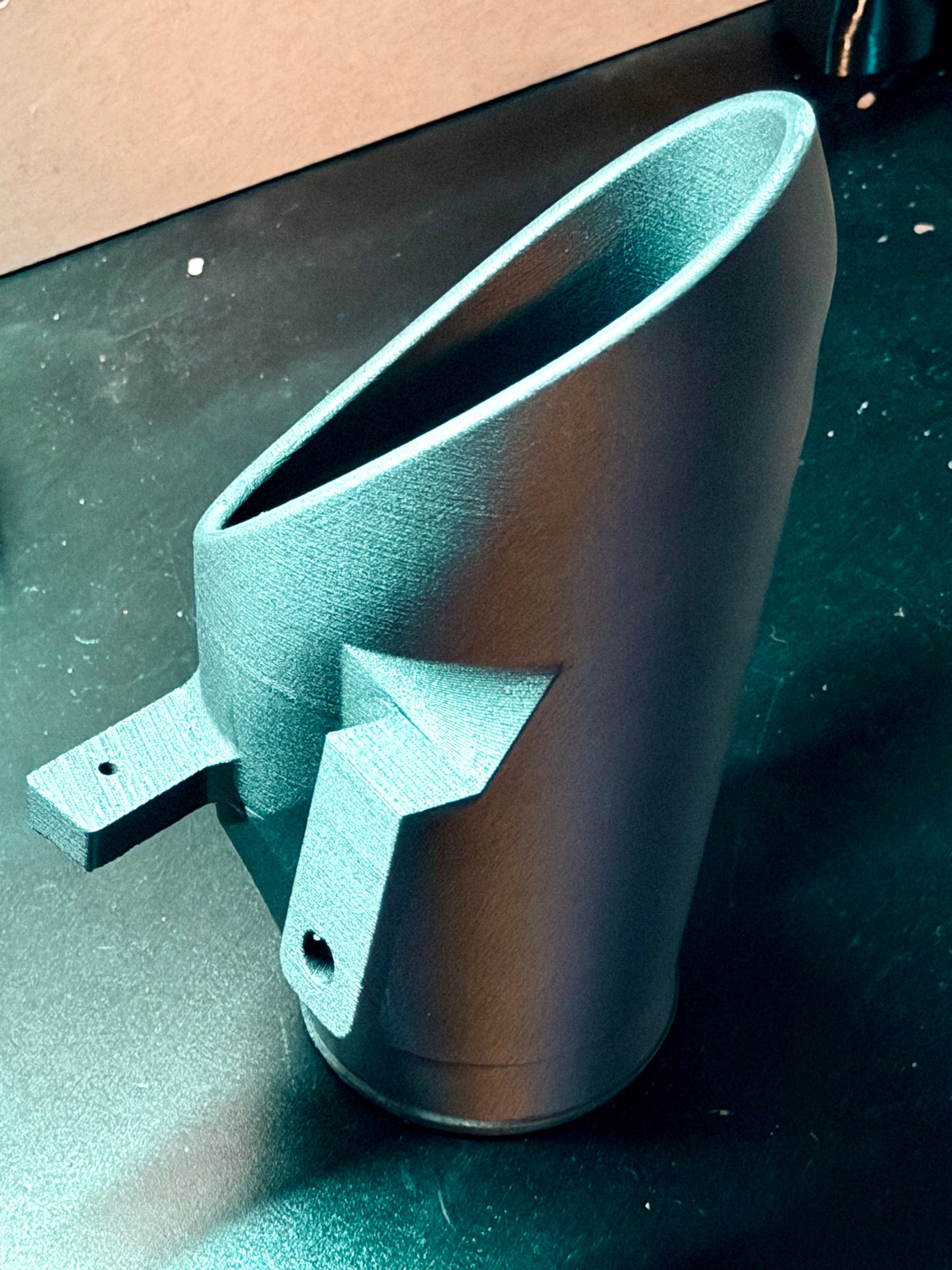

Each air ram is professionally 3D printed from ASA-CF (Carbon Fiber Reinforced ASA), an engineering-grade material chosen for automotive exterior applications. Compared to standard plastics, ASA-CF offers excellent UV resistance, weather resistance, and heat resistance, while the carbon fiber reinforcement provides increased rigidity, dimensional stability, and a premium textured finish.

Installation

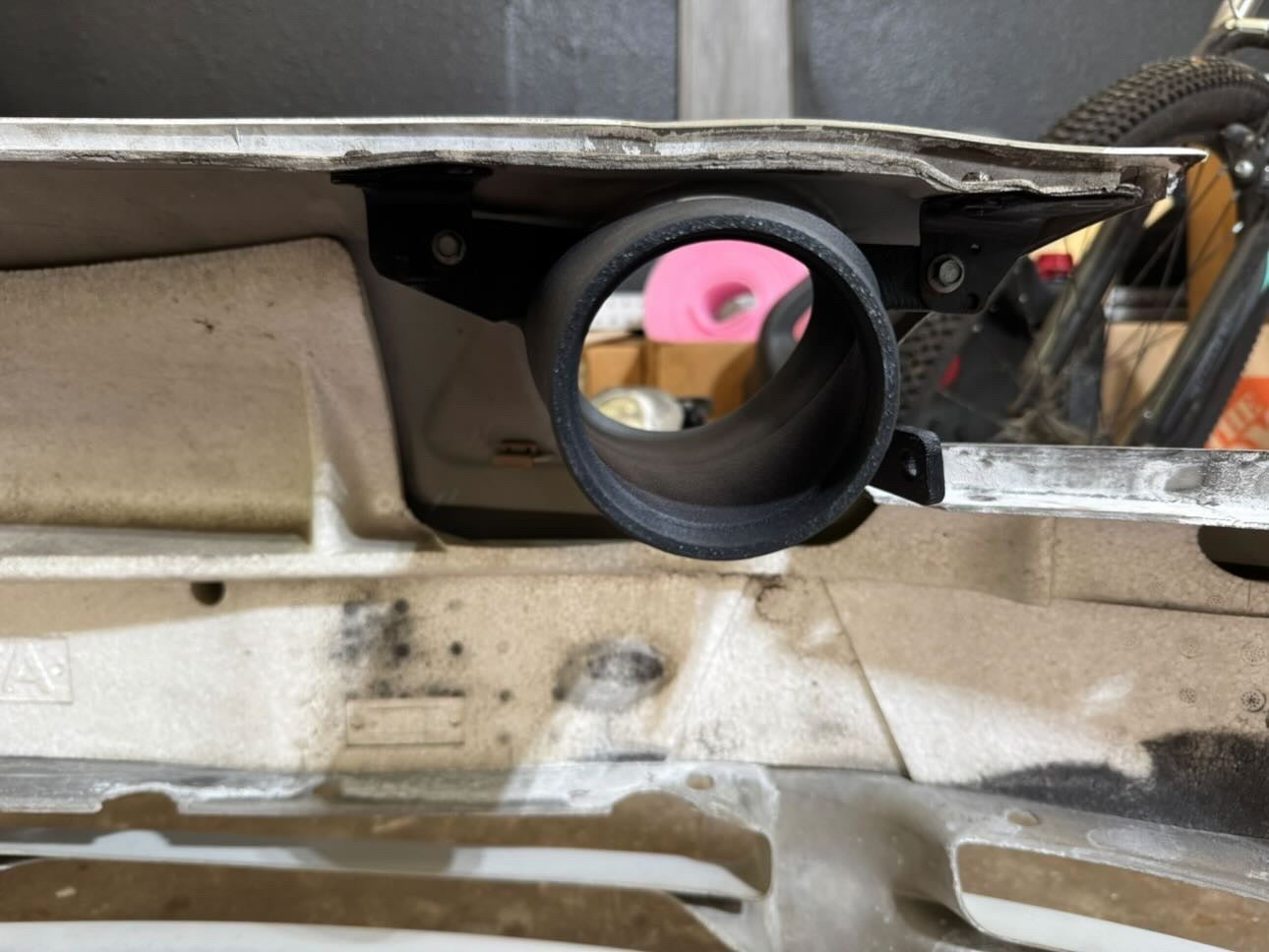

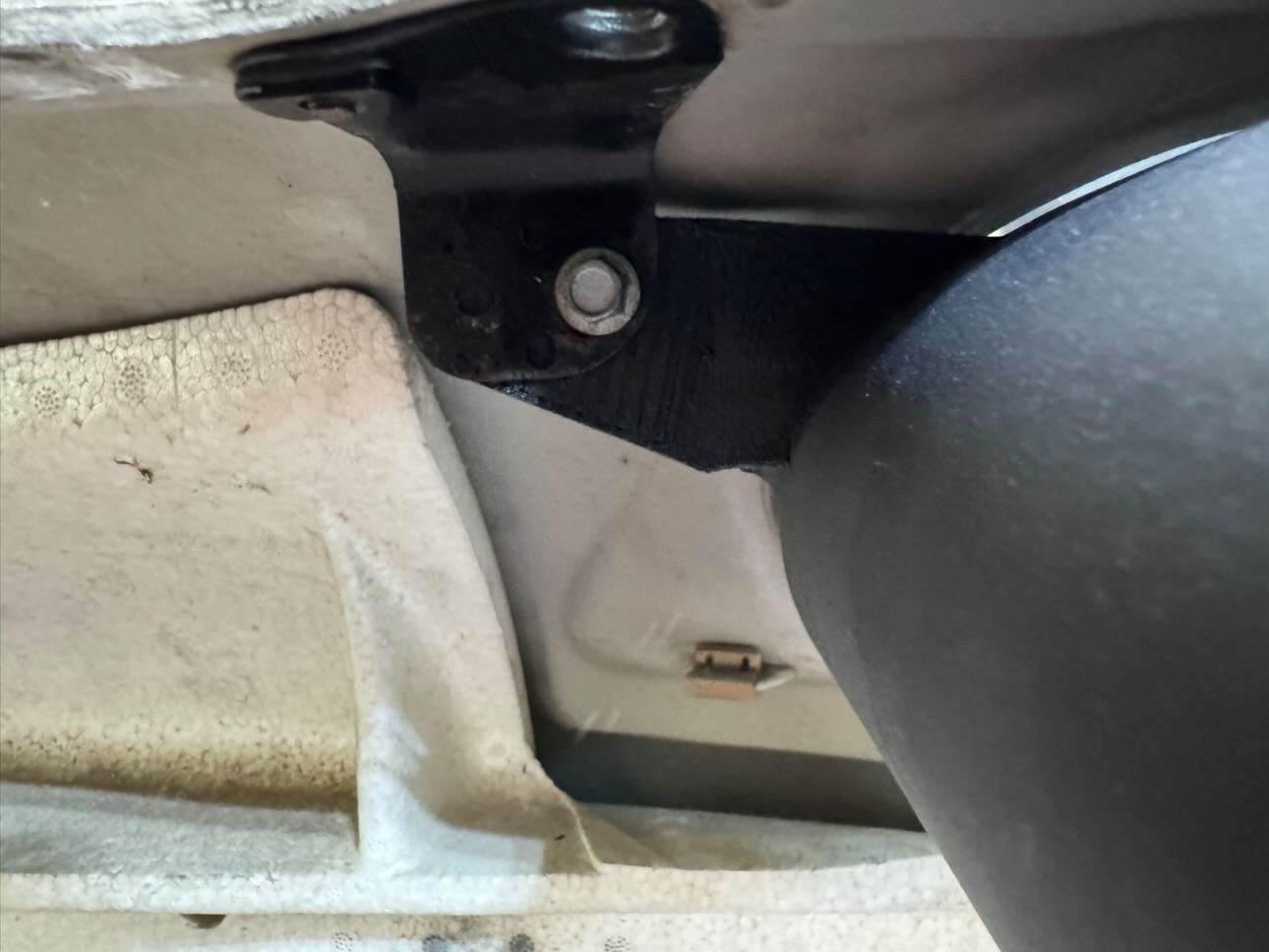

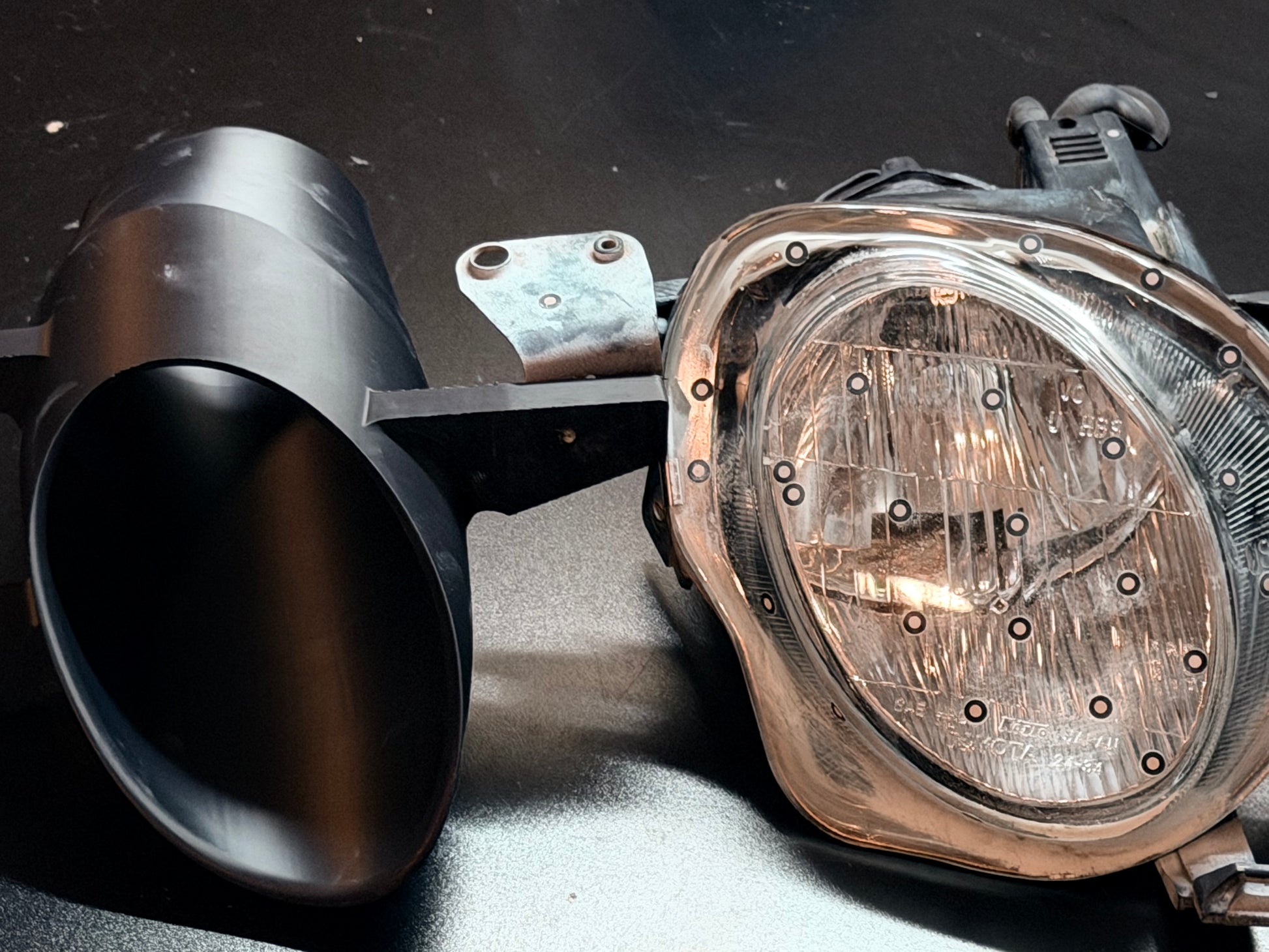

The air ram installs using the factory high beam bracket and mounting hardware, which must be transferred from your original headlight assembly.

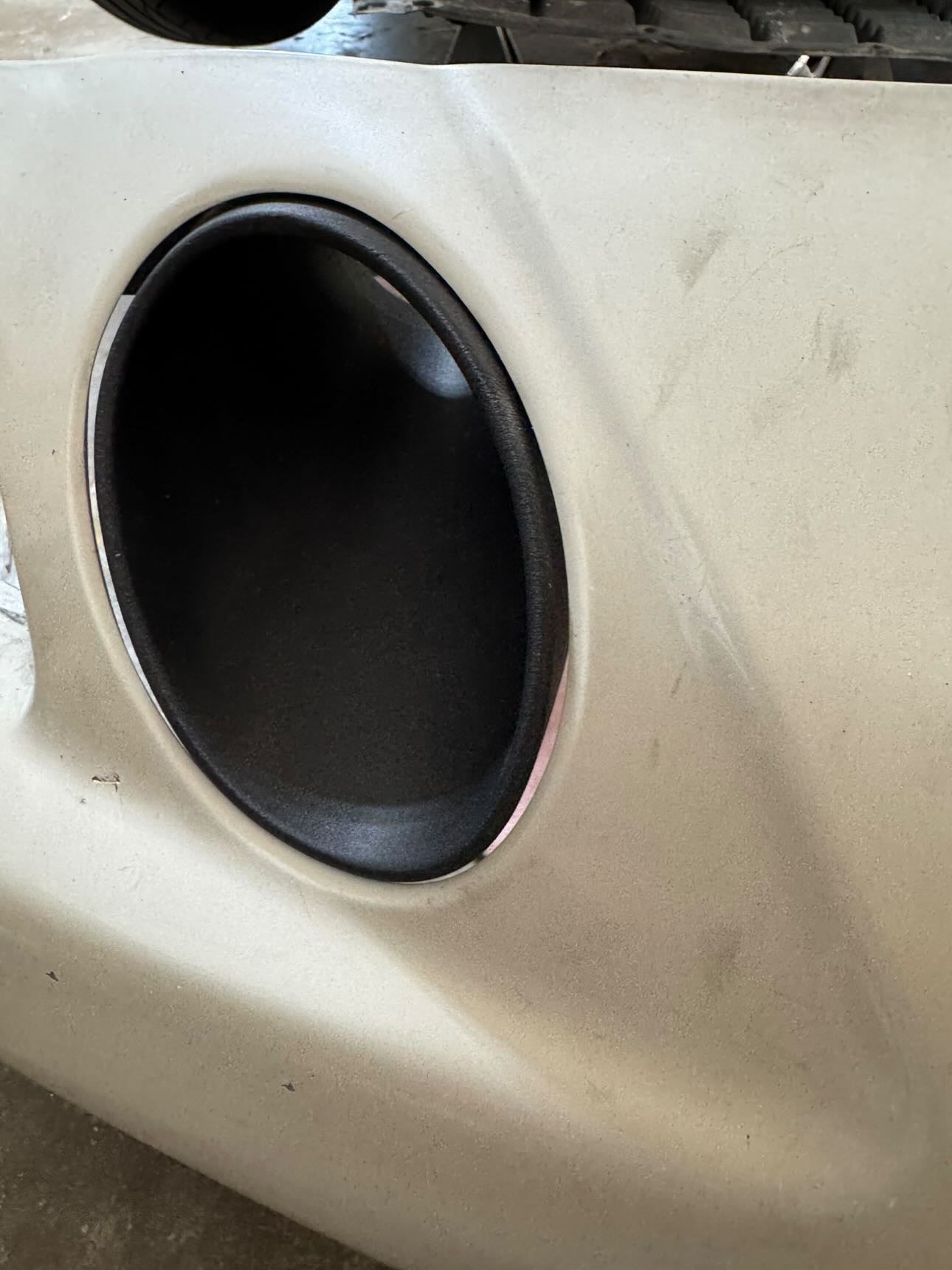

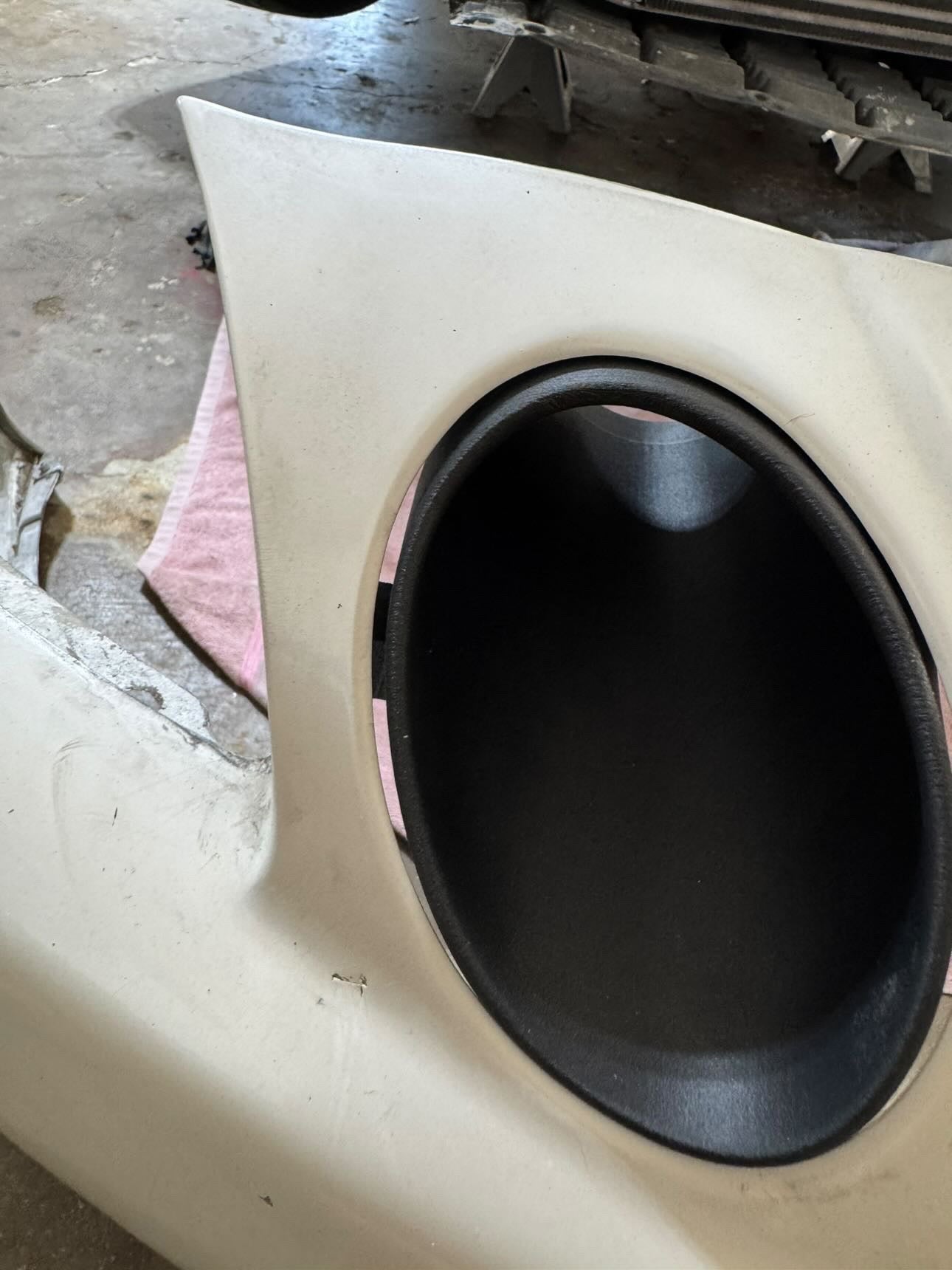

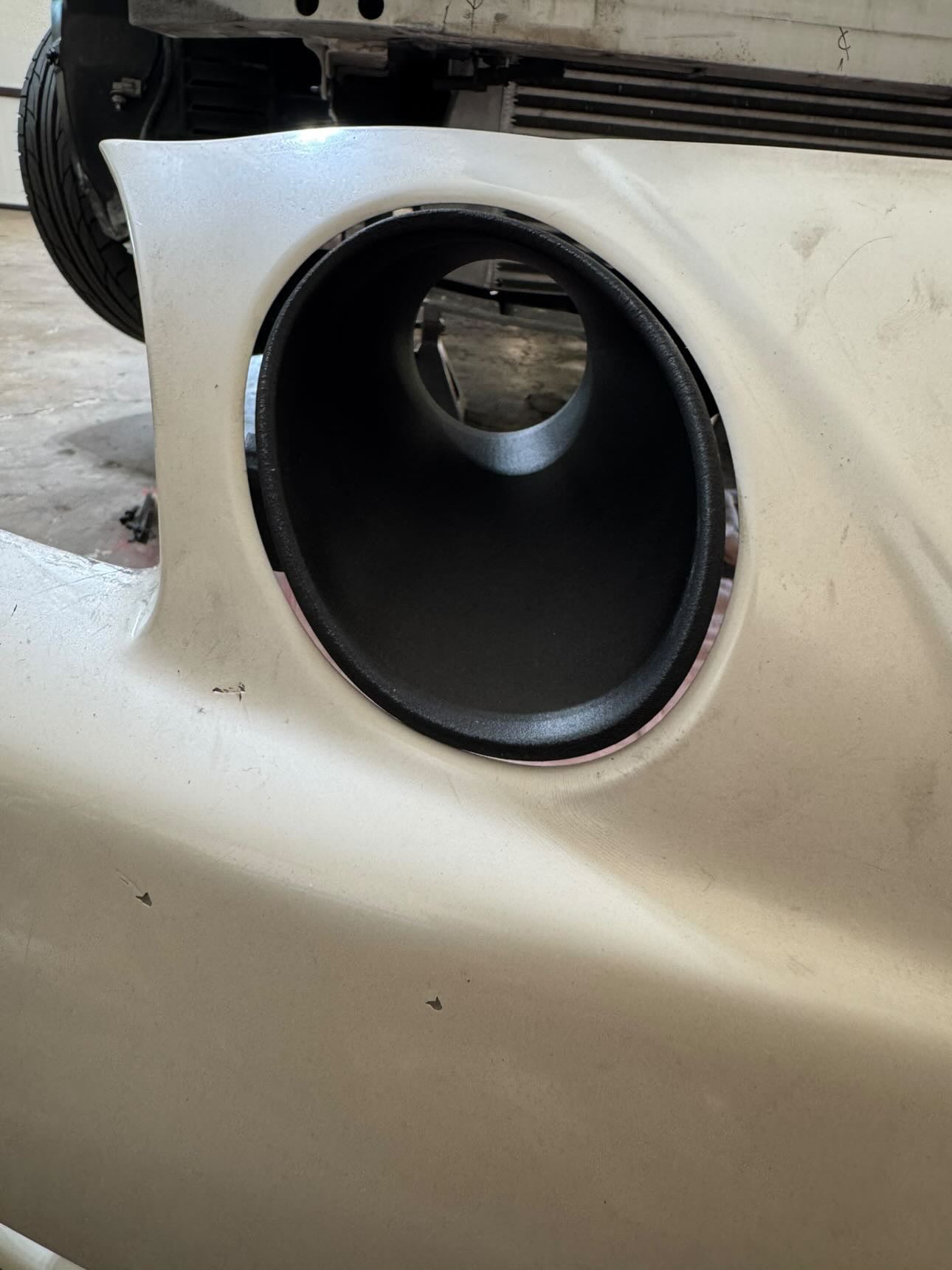

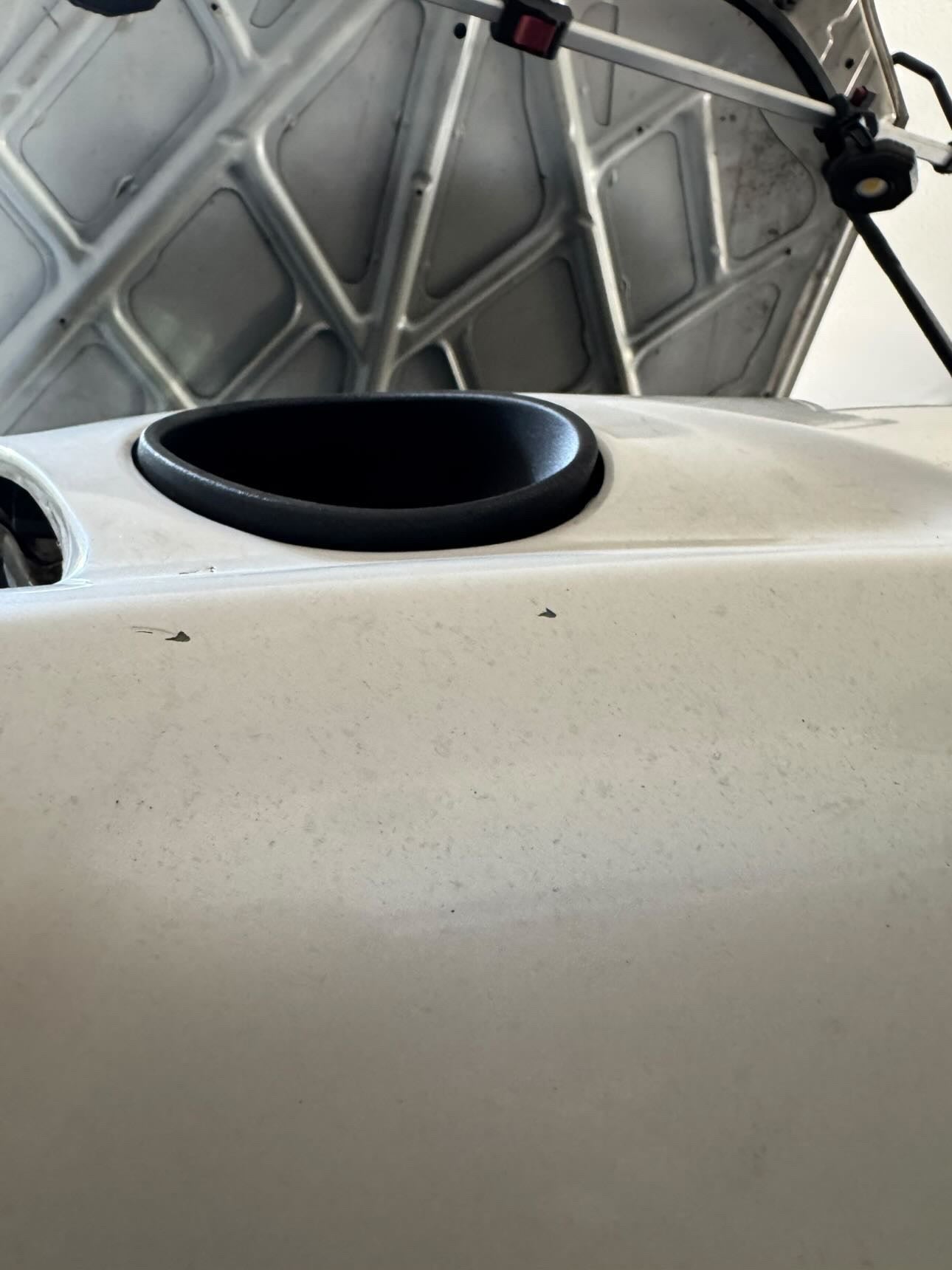

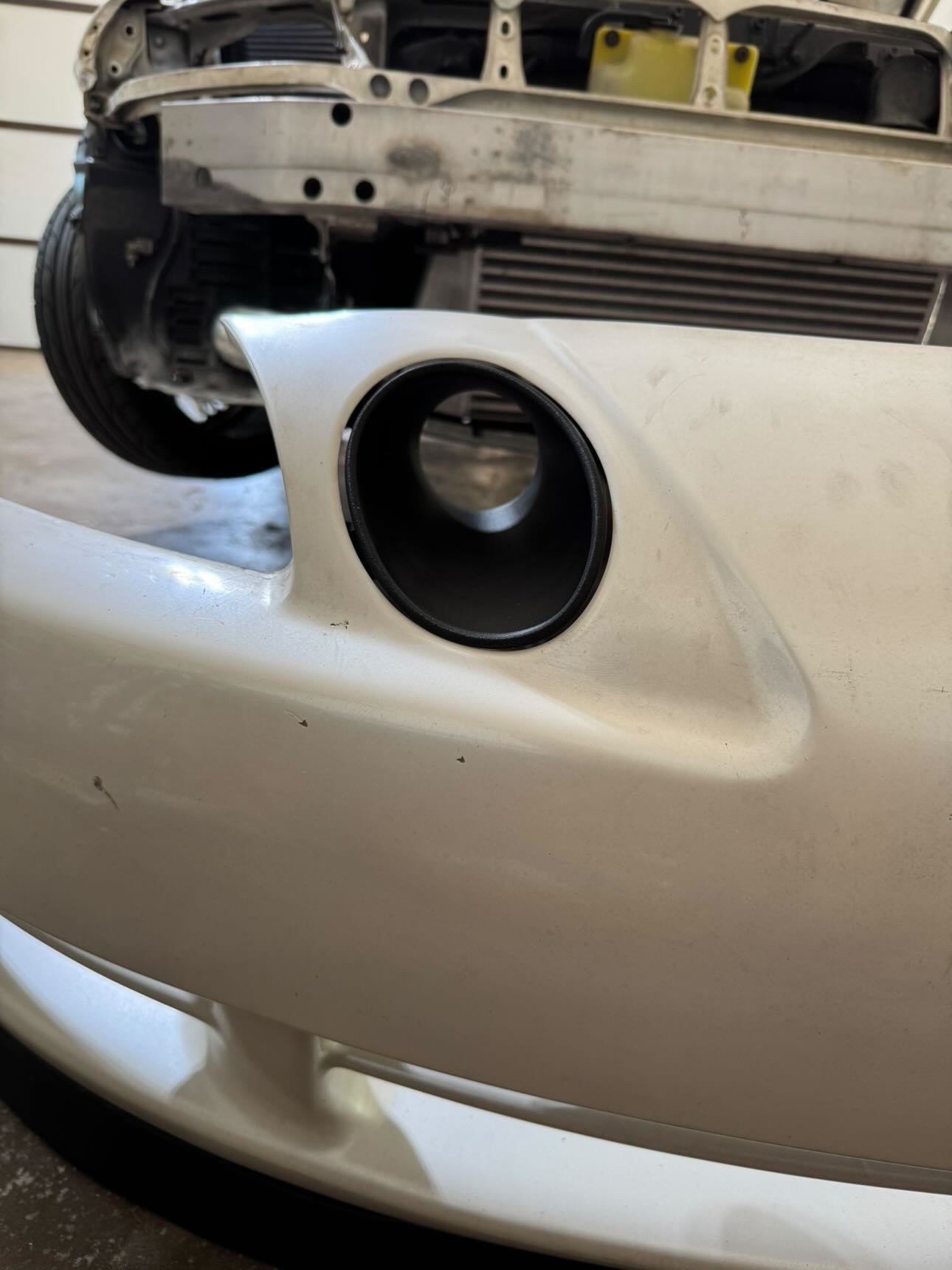

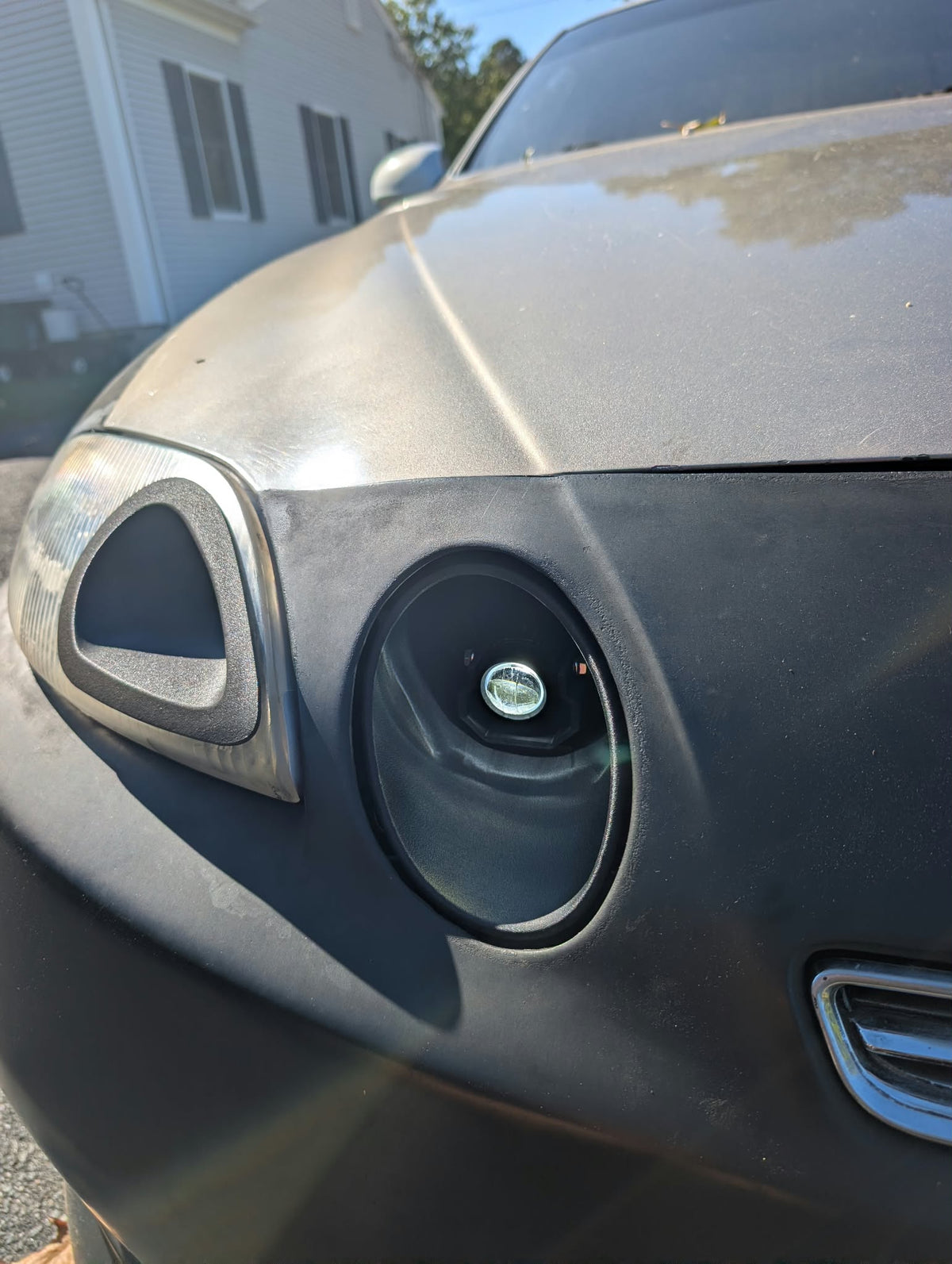

The front opening features a small protruding lip that extends slightly through the bumper opening for improved airflow.

Wiring Harness Information

The optional LED projector pod uses a dual-color switchback design, allowing the white and yellow LEDs to be wired according to your preferred setup.

Wire Functions

- Red Wire: White LED Power

- Yellow Wire: Yellow LED Power

- Black Wire: Ground

Wiring harness(Default)

Our wiring configuration uses the factory high beam circuit to operate the white LED.

In this setup:

- The white LED is powered directly by the factory high beam circuit through the included plug-and-play connector.

- The yellow LED is left as a separate power lead, allowing the customer to wire it however they prefer.

To use the yellow LED, the power wire must be connected to a separate switch and relay (not included).

If you do not intend to use the yellow LED function, no additional wiring beyond the standard installation is required.

Important Notes

- Please allow 1–2 weeks for production before shipment due to high demand.

- Factory Headlight Bracket is NOT included. This product is designed to be installed into your existing factory high beam headlight.

- Installation requires modification of the factory headlight, cutting, and electrical wiring.

- Professional installation is strongly recommended.

- This product is intended for off-road use only.

- This modification is not DOT-compliant and may not be legal for use on public roads in your area.

- MK1 Motorsport is not responsible for damage to the vehicle's electrical system, lighting components, or other related parts resulting from improper installation, wiring, or misuse of this product.

- High-temp silicone brake ducts are not included
